Part No.

Description

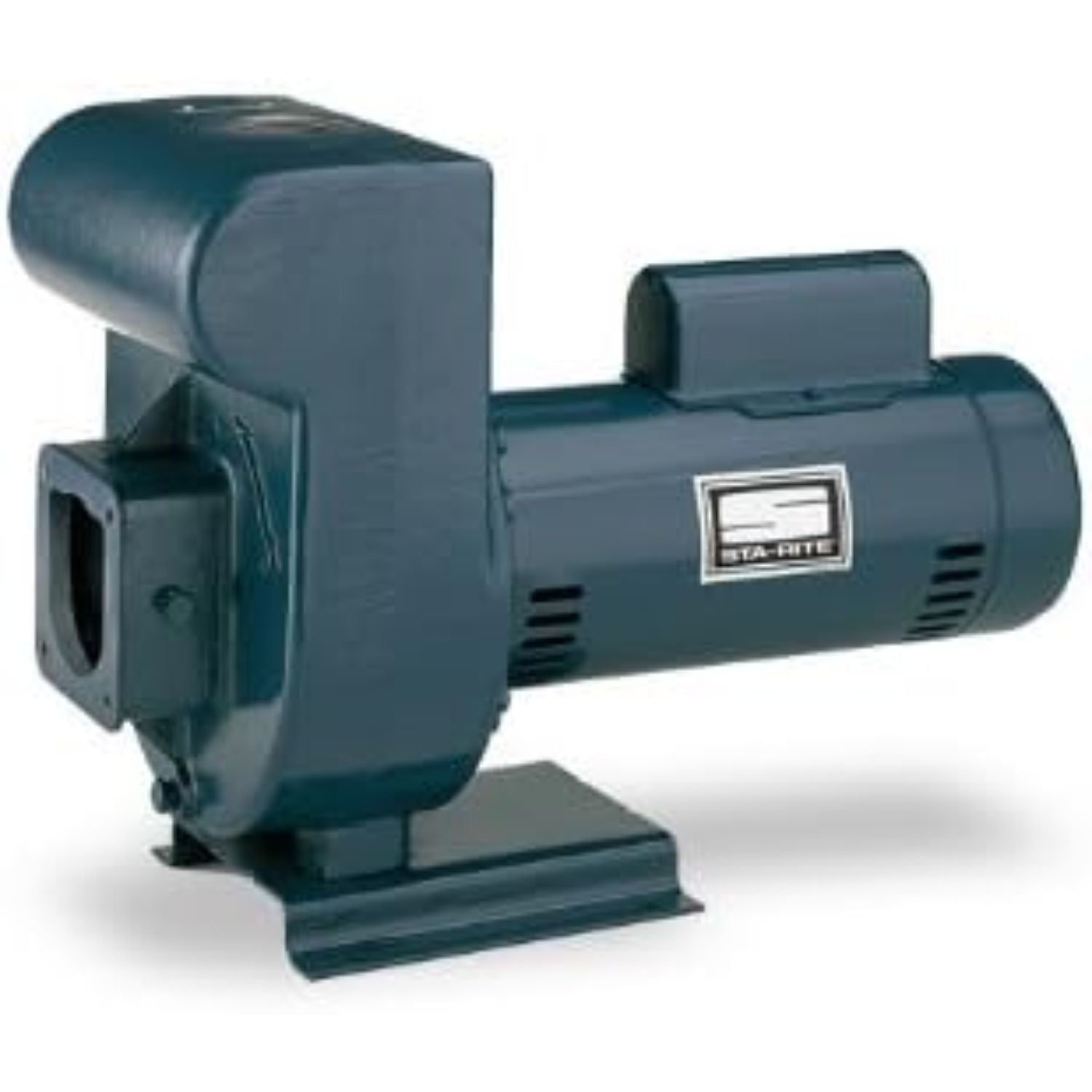

SELF PRIMING CENTRIFUGAL PUMP - D SERIES

1

C218-177

Motor 230V/60H/1 Ph. DMH Medium Head: 3 HP, High Head: 3 HP

1

C218-180

Motor 230V/60H/1 Ph. DMJ Medium Head: 5 HP, High Head: 5 HP

1

C218-179

Motor 230/460V/60H/3 Ph. DMH

Medium Head: 3 HP, High Head: 3 HP

1

C218-182

Motor 230/460V/60H/3 Ph. DMJ Medium Head: 5 HP, High Head: 5 HP

1

C218-191

Motor 200V/60H/1 Ph. DMH Medium Head: 3 HP, High Head: 3 HP

1

C218-192

Motor 200V/60H/1 Ph. DMJ Medium Head: 5 HP, High Head: 5 HP

1

C218-178

Motor 200V/60H/3 Ph. DMH Medium Head: 3 HP, High Head: 3 HP

1

C218-181

Motor 200V/60H/3 Ph. DMJ Medium Head: 5 HP, High Head: 5 HP

2

U9-265

O-Ring

2A

C23-58

Sleeve

3

U65-42A

Key, Square 3/16 x 3/16 x 7/8 in.

4

N/A

5

071681

Screw 3/8 x 16 x 7/8 in. HH

6

C2-66

Motor Adapter

7

C20-46

Gasket, Adapter

8

U43-12ZP

Lockwasher, 3/8 in. 1

9

U30-73ZP

Capscrew, 3/8-16 x 7/8 in.

10

U109-433SS

Shaft Seal 3

11

C20-101

Gasket, Seal

12

C5-246

Impeller 2 - Medium Head: 3 HP

12

C5-247

Impeller 2 - Medium Head: 5 HP

12

C5-248

Impeller 2 - High Head: 3 HP

12

C5-249

Impeller 2 - High Head: 5 HP

13

J23-5

Wear Ring (Only)

13

C23-14

Wear Ring (Only) - Medium Head: 5 HP

14

C20-100

Gasket

15

C43-45SS

Washer, Impeller

16

C43-46

Gasket

17

U30-72SS

Screw, Impeller 3/8-16 x 3/4 in. 1

18

C101-126

Volute Diffuser w/ Wear Ring Medium Head: 3 HP

18

C101-126B

Volute Diffuser w/ Wear Ring Medium Head: 5 HP

18

C101-132

Volute Diffuser w/ Wear Ring High Head: 3 HP, High Head: 5 HP

19

C21-2

Diffuser Ring

20

C76-12

Pump Body

Medium Head: 3 HP, High Head: 5 HP

20

C76-12C

Pump Body - Medium Head: 5 HP

20

C76-12B

Pump Body - High Head: 3 HP

21

U78-941ZPV

Pipe Plug, 1/4 in. NPT 1

22

U30-60ZP

Capscrew 5/16-18 x 3/4 in.
