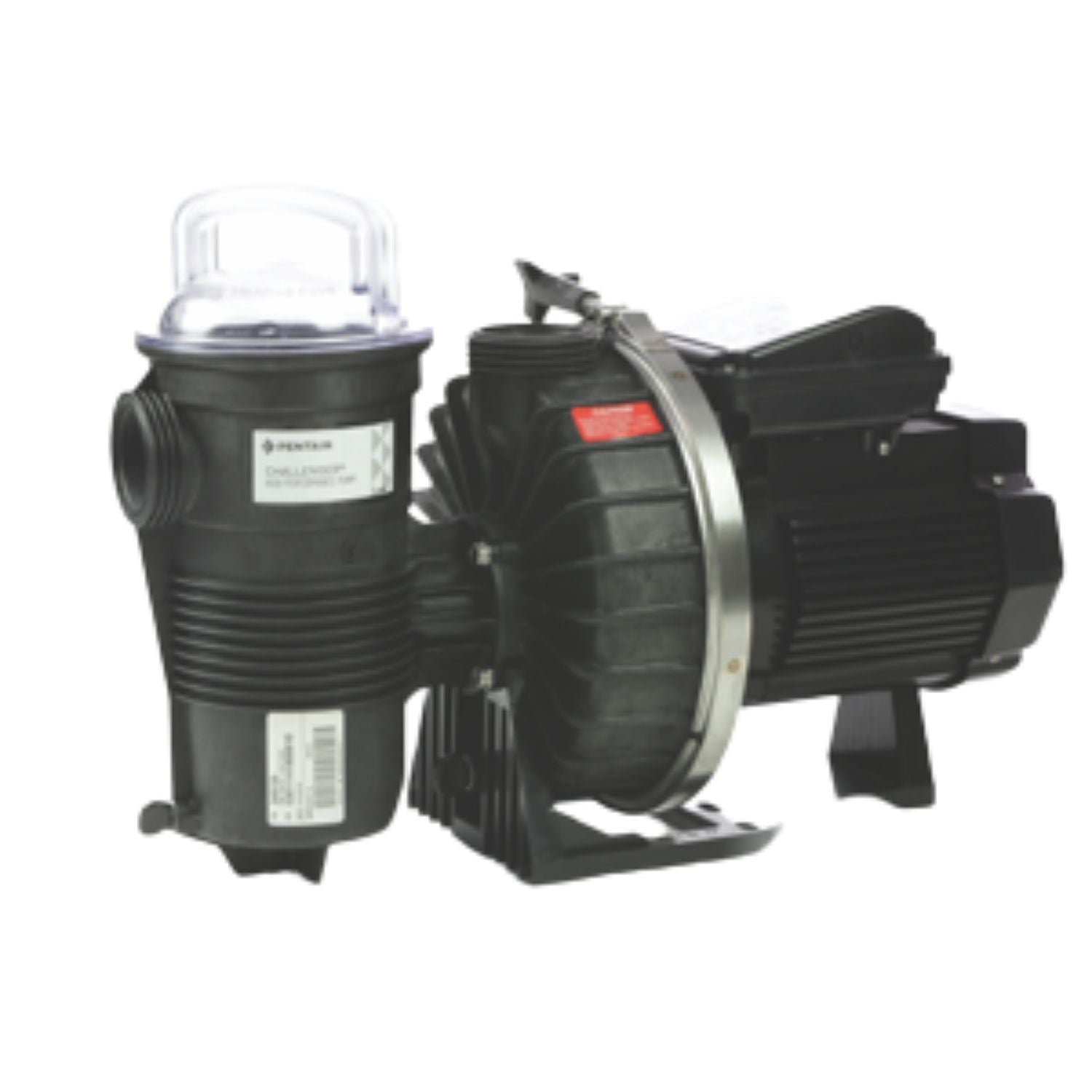

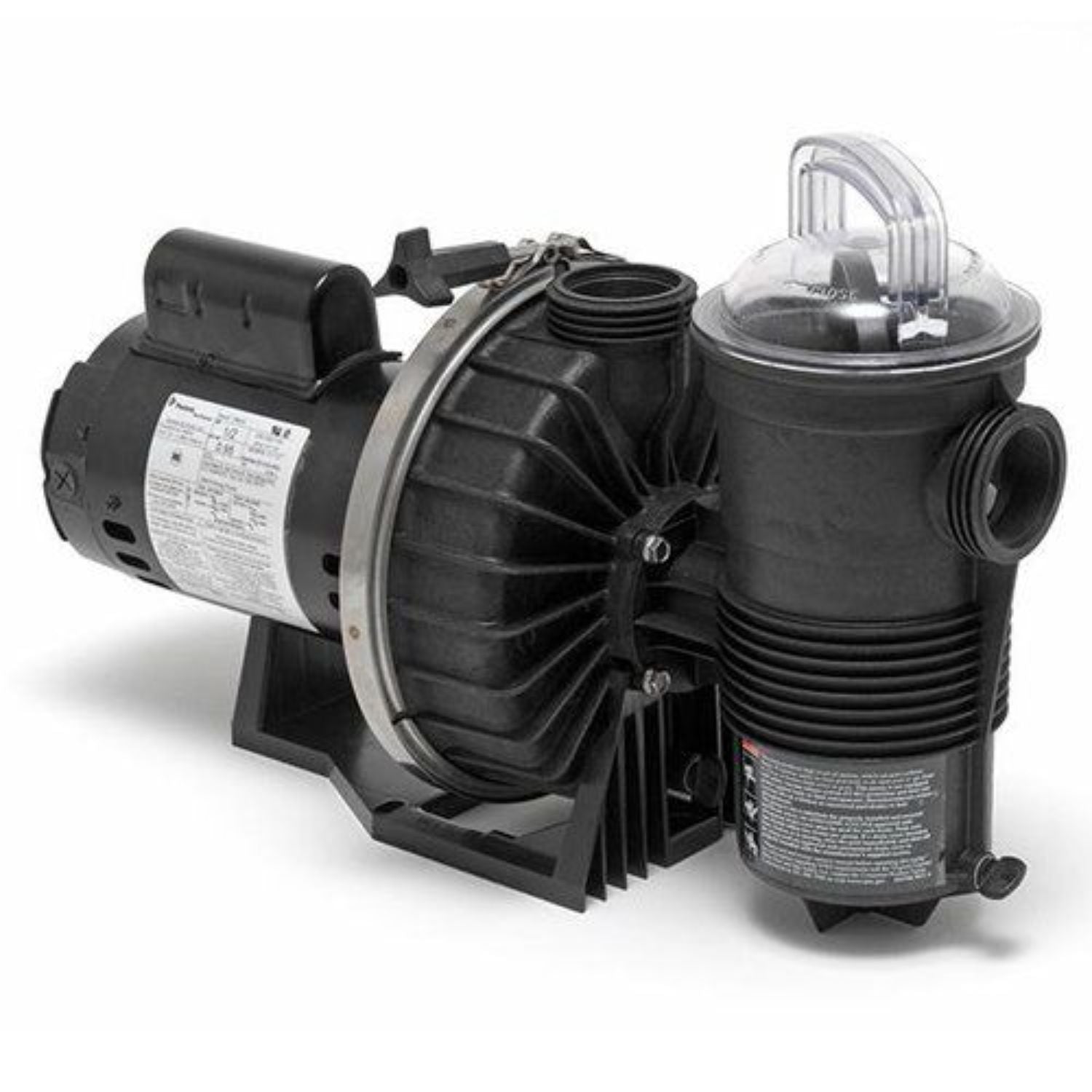

PENTAIR HIGH FLOW CHALLANGER PUMP 2HP - 342238
Regular price
$902.70
Request purchase access
Couldn't load pickup availability
CHALLENGER HIGH FLOW PUMP REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| 2 | 355004 | Plate, seal - black |
| 3 | 355028 | Plate, mounting 1/2F, 3/4F, 3/4A, 1A |
| 3 | 355078 | Plate, mounting 1F, 1-1/2F, 1-1/2A, 2A |
| 3 | 355095 | Plate, mounting 2F, 2-1/2A |
| 3 | 355495 | Plate, mounting 5F |
| 4 | 354545S | Seal, 5/8 in. mechanical |
| 5 | 355043 | Impeller, 1/2F, 3/4A |
| 5 | 355067 | Impeller, 3/4F, 1A |
| 5 | 355074 | Impeller, 1F, 1-1/2A |
| 5 | 355086 | Impeller, 1-1/2F, 2A |
| 5 | 355093 | Impeller, 2F, 2-1/2A |
| 5 | 355068 | Impeller, 3F 50 Hz/5F 60 Hz |
| 6 | 355029 | Diffuser, 1/2F, 3/4F, 3/4A, 1A |
| 6 | 355077 | Diffuser, 1F, 1-1/2F, 1-1/2A, 2A |
| 6 | 355094 | Diffuser, 2F, 2-1/2A |
| 6 | 355069 | Diffuser, 3F, 50 Hz/5F 60 Hz |
| 7 | 355320 | Band clamp assembly, complete |
| 8 | 355468 | Housing, front, black 4 |
| 8 | 355469 | Housing, front, almond 4 |
| 9 | U30-74SS | Screw, 3/8-16 x 1 in. SS hex hd cap SS 4 req. |
| 10 | 355389 | Screw, impeller locking |
| 11 | 355305 | Base, pump 1 |
| 11B | 355385 | Adapter, 5-5/8 in. dia. motor 2 |
| 12 | 355334 | Screw, No.8, 32 hex wsh. hd., 3 req. |
| 13 | 355030 | O-ring, diffuser (all except 5 HP) |
| 13 | 355331 | O-ring diffuser, 5 HP only |
| 14 | 355329 | O-ring, front housing |
| 15 | 355335 | Screw, 5/16, 18 x 1/2 in. SS hex hd., 2 req. |
| 16 | 192115 | O-ring, drain plug |
| 17 | 357161 | Plug, 1/4 in. drain |
| 18 | 152060 | Bolt, 5/16, 18 x 4 in. carriage 2 |
| 19 | 072173 | Washer, 5/16 in. SS flat |
| 20 | 174882 | Knob (fits clamp w/ removable bolt only) |
| 20 | 175025 | Knob (fits clamp w/ captured T-bolt only) |
| 21 | 355330 | O-ring, strainer pot flange |
| 22 | 354265 | Screw, 5/16, 18 hex wsh. hd., 4 req. |
| 23 | 357161 | Plug, 1/4 in. drain |
| 24 | 192115 | O-ring, drain plug |
| 25 | 355300 | Strainer, pot, black 3 |
| 26 | 355318 | Basket, plastic strainer |
| 26 | 355441 | Basket, SS Strainer (3F Only) |
| 26 | 355901 | Basket, SS strainer, 5F |
| 27 | 350013 | O-ring, lid |
| 27 | 152509 | Square ring, 8-1/2 in. (5 HP only) |
| 28 | 355301 | Lid, strainer pot |
| 28 | 354112 | Lid, strainer pot, chemical resistant |
| 28 | 355902 | Lid, strainer pot, 5F, clear |
| 28 | 355914 | Lid, strainer pot, 5F, black, chemical resistant |
| 29 | 552377 | Bushing, reducer 1/2F, 3/4F, 3/4A, 1A, 2 req. |
| 31 | 154527 | Wrench, 8-1/2 in. |
| CHALLENGER HIGH FLOW PUMP MOTORS | ||
|---|---|---|
| Legend | Part # | Description |
| 1 | 354812S | 3HP, 3 ph sq. flg. TEFC 208-230/460 |
| 1 | 354814S | 5HP, 3 ph, TEFC 208-230/460 sq. flg. only |
| 1 | 355019S | 1/2F, 3/4A std. sq. flg., 115/208-230 |
| 1 | 355021S | 3/4F, 1A std. sq. flg., 115/208-230 |
| 1 | 355023S | 1F, 1-1/2A std. sq. flg., 115/208-230 |
| 1 | 355025S | 1-1/2F, 2A std. sq. flg., 115/208-230 |
| 1 | 355027S | 2F, 2-1/2A std. sq. flg., 208-230 |
| 1 | 355034S | 3F std. sq. flg. 230 only |
| 1 | 355009S | 3/4FE, 1AE sq. flg. 115/208-230 |
| 1 | 355011S | 1FE, 1-1/2AE sq. flg. 115/208-230 |
| 1 | 355013S | 1-1/2FE, 2AE sq. flg. 208-230 |
| 1 | 355015S | 2FE, 2-1/2AE sq. flg. 208-230 |
| 1 | 355017S | 3FE, 1 ph sq. flg. 208-230 |
| 1 | 353319S | 5FE, 1 ph, 5 HP, 208-230 |
| 1 | 355375S | 3/4F, 1A std. sq. flg. 2 sp. 115 only, 28 lbs. |
| 1 | 355232S | 3/4F, 1A std. sq. flg. 2 sp. 230 only |
| 1 | 355376S | 1F, 1-1/2A std. sq. flg. 2 sp. 230 only |
| 1 | 355377S | 1-1/2F, 2A std. sq. flg. 2 sp. 230 only |
| 1 | 355378S | 2F, 2-1/2A std. sq. flg. 2 sp. 230 only |
| 1 | 354806S | 1 HP, 3 ph sq. flg. TEFC 208- 230/460 |
| 1 | 354808S | 1-1/2 HP, 3 ph sq. flg. TEFC 208- 230/460 |
| 1 | 354810S | 2 HP, 3 ph sq. flg. TEFC 208- 230/460 |
