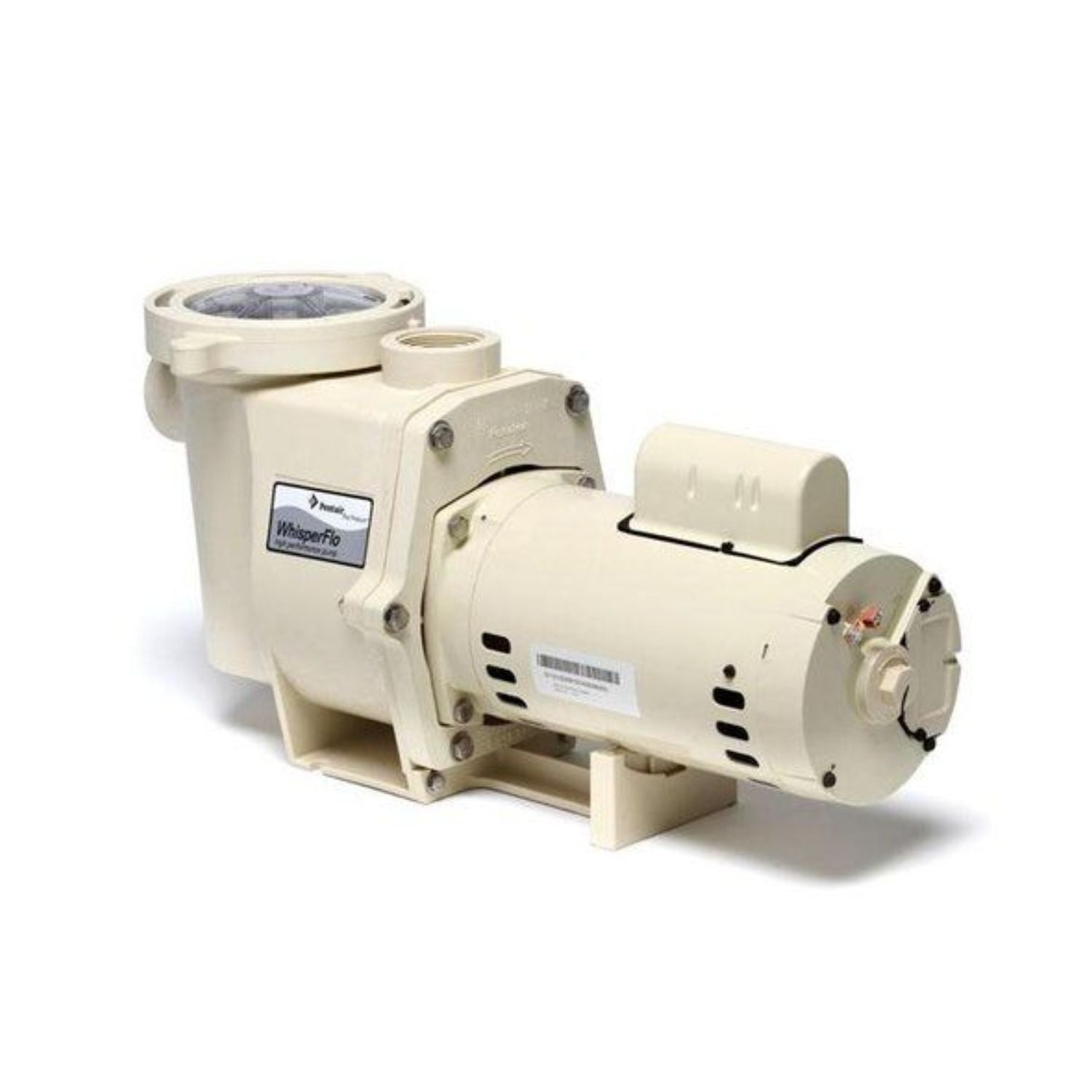

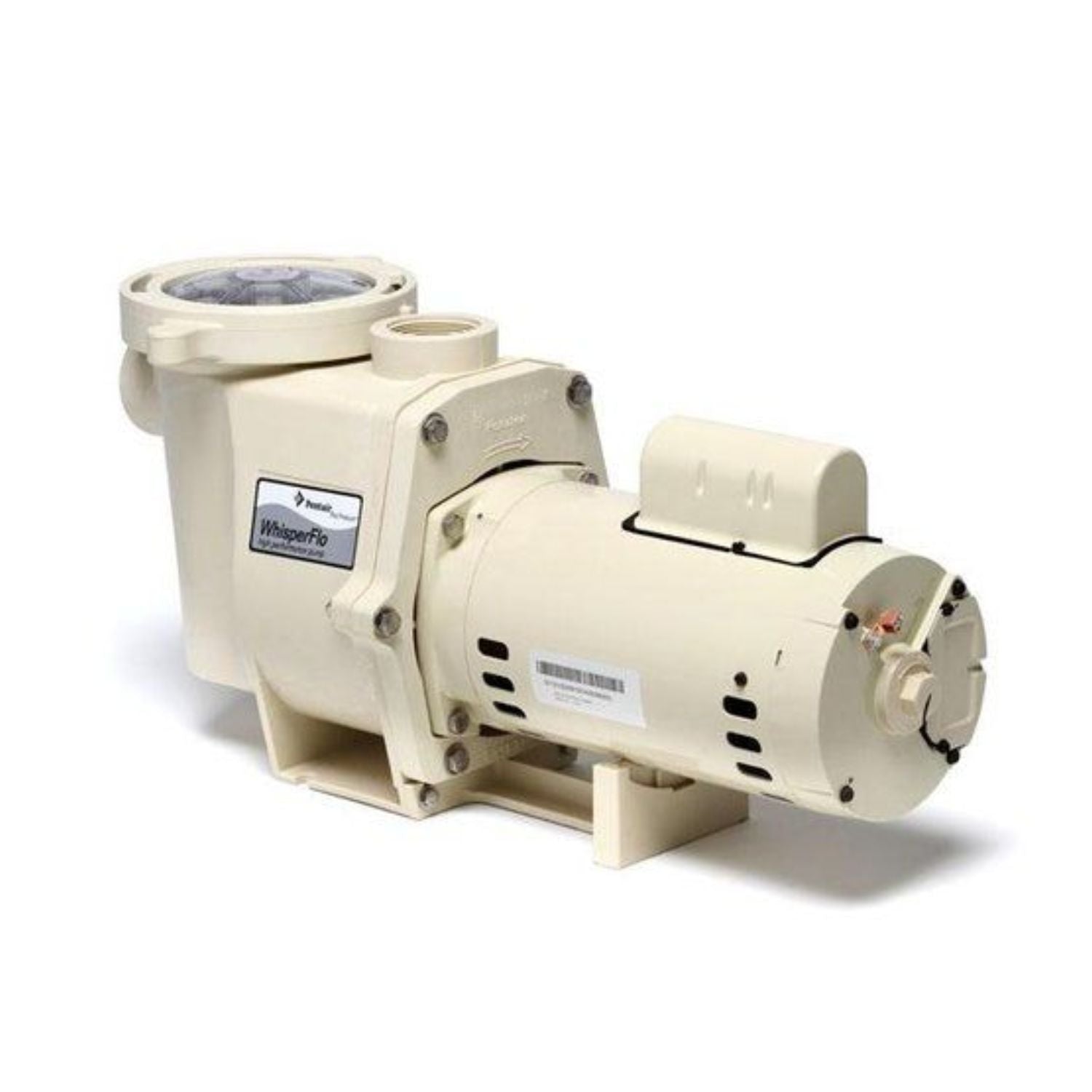

PENTAIR WHISPERFLO PUMP 1HP EFF WFE-6 - 011514

Out of stock
SKU: 011514
Regular price $733.04

SUPERFLO REPLACEMENT PARTS



Legend Part # Description
1 070711 Clamp band assembly
1 357150 Clamp, Cam & RampTM
1 357199 Clamp, Cam & Ramp
1A 071136Z Knob
2 070795 Cover, clear
2 357151 Cover, clear, WFE pump
2 357156 Cover, chemical resistant Cam & Ramp
3 071422 O-ring
3 350013 O-ring
3 0-218-0 O-ring
4 070387 Basket
4 B-199 Basket
5 070430 Bolt, 3/8, 16 x 1-1/4 hex hd. SS, 4 req.
6 072184 Washer, 3/8 x 13/16 o.d. SS, 6 req.
7 070431 Bolt,3/8, 16 x 1-3/4 hex hd. SS, 2 req.
8 071403 Nut, 3/8, 16 hex hd., 2 req.
9 071445 O-ring parker No.2-265, WFE pump
9 357100 Black Gasket for Seal Plate
9 357102 Almond Gasket for Seal Plate
10 357149 Volute & Sealplate, Almond Replacement Kit
10 350015 Volute, almond
10 357157 Volute, black
11 355227 O-ring parker No.2-238, WFE pump
11 0-359-0
12 071660 Set screw, 4-40 x 1-1/8 WFE, 2 req.
13 072928 Diffuser assembly, WFE-12, 3 HP; WFK-12, 3HP models
13 072927 Diffuser assembly, WFE-2–8, 1/2 HP – 2-1/2 HP
14 071652 Set screw, 1/4, 20 x 1 lh. phillips
15 075713 Rubber washer, WFE pump
16 071734S Seal PA-7 w/ ceramic seat, PS1000
16 PS-1000
17 070429 Bolt, 3/8, 16 x 7/8 SS hex hd., 4 req.
18 350202 Seal Plate Kit, Almond with Gasket
18 350101 Seal Plate Kit WFE Black
19 070927 Foot, WFE-4 pump, almond
19 357159 Foot, black 9
20 070929 Foot insert, WFE pump, almond
20 357160 Foot insert, WFE pump, black 9
21 071657 Screw, 1/4, 20 x 1 in. hh. SS, 2 req.
22 071406 Nut, 1/4, 20 hex. hd. SS, 2 req.
23 072183 Washer, flat 1/4 x 5/8, 2 req.
24 071131 Knob plug drain, 2 req. almond
24 357161 Knob plug drain, 2 req., black 9
25 192115 O-Ring drain plug, 2 req.
26 357149 (Includes items 1-4, 9, 10, 16, 18, 24, 25.)
MOTORS
27 350088S 3/4 HP, 2 sp, WFDS-3
27 355020S 3/4 HP, WF-3, 24, 1 sp, almond
U.S Motors
27 EUSQ1072 U.S MOTOR 3/4 HP SQUARE FLANGE
Regal Beloit Motors
27 USQ1072 CENTURY SQUARE FLANGE MOTOR 3/4 HP
28 073128 Impeller (WFE-4, WFE-26, WF-4,
WF-26, WFK-4, WFDS-4, WFDS-26)
28 073129 Impeller (WF-6, WF-28, WFE-6, WFE-28, WFK-6, WFDS-6, WFDS-28)
28 073130 Impeller (WF-8, WF-30, WFE-8, WFE-30, WFK-8, WFDS-8, WFDS-30)
28 073131 Impeller (WFE-12, WF-12, WFK-12)

This inground pool pump’s hydraulic design offers high water flow while providing quiet performance.
Unique design features make this pool pump easy to monitor and clean.

Oversized strainer basket and volute—an industry standard in pool pumps
Lower HP's deliver higher performance than industry standards.
Compatible with all cleaning systems, various filters, and jet-action spas
Heavy-duty, durable construction is designed for long life.
Designed for residential and commercial applications
A new motor increases life, energy, efficiency, ease of installation, and better cooling for a long service life.
