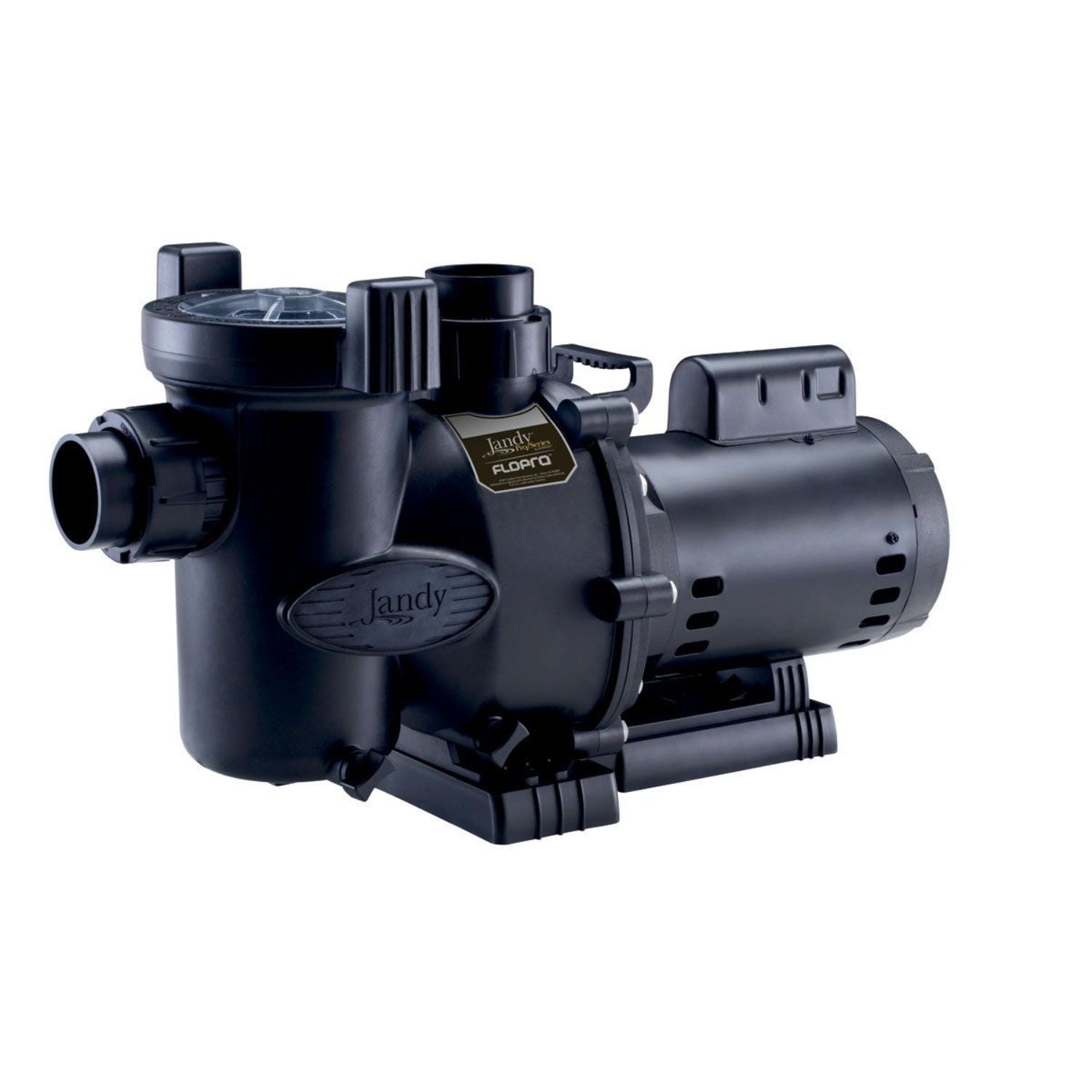

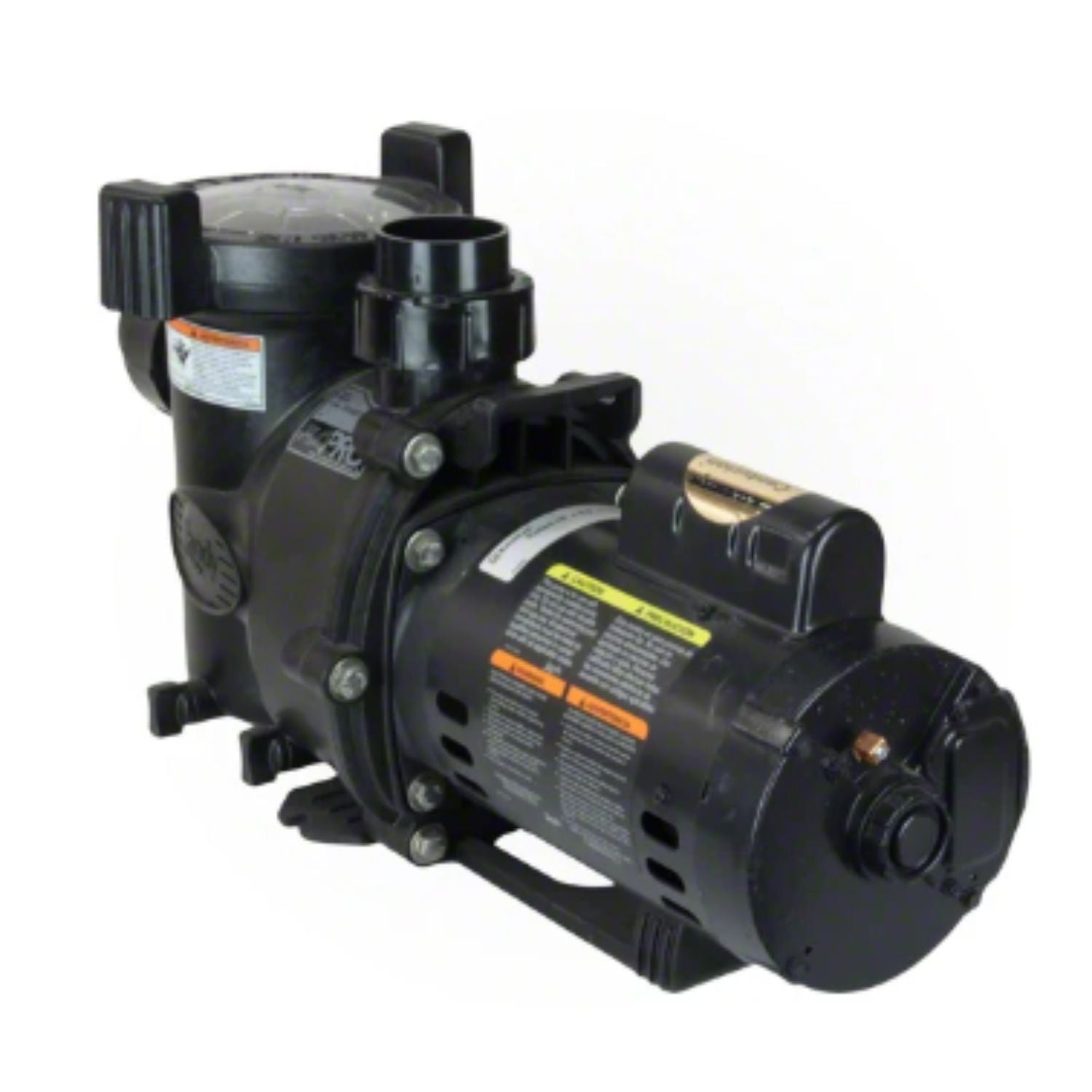

FLOPRO MEDIUM HEAD PUMP 2.5 HP - FHPM2.5
Request purchase access
Couldn't load pickup availability
FloPro (FHPM) Series Pump
Replacement Parts
|
Item |
Part No. |
Description |
|
1 |
R0479310 |
Motor, Single-Speed and Hardware |
|
1 |
R0479311 |
Motor, Single-Speed and Hardware |
| 1 |
R0479312 |
Motor, Single-Speed and Hardware |
|
1 |
R0479313 |
Motor, Single-Speed and Hardware |
|
1 |
R0479314 |
Motor, Single-Speed and Hardware |
|
1 |
R0479306 |
Motor, Two-Speed and Hardware |
|
1 |
R0479307 |
Motor, Two-Speed and Hardware |
|
1 |
R0479308 |
Motor, Two-Speed and Hardware |
|
2 |
Backplate Mechanical Seal, Carbon Mechanical Seal, Ceramic Backplate O-Ring, 2-375 Bolt Washer |
|
|
3 |
R0479601 |
Impeller, FHP Screw w/ O-Ring Backplate O-Ring |
|
3 |
R0479602 |
Impeller, FHP Screw w/ O-Ring Backplate O-Ring |
|
3 |
R0479603 |
Impeller, FHP Screw w/ O-Ring Backplate O-Ring |
|
3 |
Impeller, FHP Screw w/ O-Ring Backplate O-Ring |
|
|
3 |
Impeller, FHP Screw w/ O-Ring Backplate O-Ring |
|
|
4 |
R0479702 |
Diffuser, FHP Diffuser O-Ring Backplate O-Ring Screw |
|
4 |
Diffuser, FHP Diffuser O-Ring Backplate O-Ring Screw |
|
|
4A |
R0622000 |
Diffuser O-Ring |
|
5 |
Mechanical Seal, Carbon Mechanical Seal, Ceramic |
|
|
6 |
Pump Body, FHP |
|
|
7 |
R0479900 |
Motor Mounting Foot, FHP |
|
8 |
Lid w/ Locking Ring Assembly, FHP Lid O-Ring |
|
|
9 |
Pump Debris Trap Basket, FHP |
|
|
10 |
Drain Plug Drain Plug O-Ring |
|
|
11 |
2" × 2" Tailpiece Tailpiece O-Ring Union Nut |
|
|
12 |
Lid O-Ring, FHP |
|
|
13 |
Backplate O-Ring, FHP |
|
|
14 |
R0480400 |
Diffuser/Impeller Hardware Kit (Diffuser O-Ring, Screws (2), Impeller Self Sealing Screw, Backplate O-Ring) |
|
15 |
R0480500 |
Backplate O-Ring Bolt, 3/8 × 16 × 2.25" Washer |
|
16 |
R0446700 |
Bolt, 3/8 × 16 × 1" Washer |
|
17 |
R0337600 |
Tailpiece O-Ring |
|
18 |
R0486700 |
Base Spacer, FHP, VSFHP, Small |
|
19 |
R0515400 |
Screw w/ O-Ring, Self-sealing |
|
20 |
R0546400 |
Base Spacer, FHP, VSFHP, Large |
