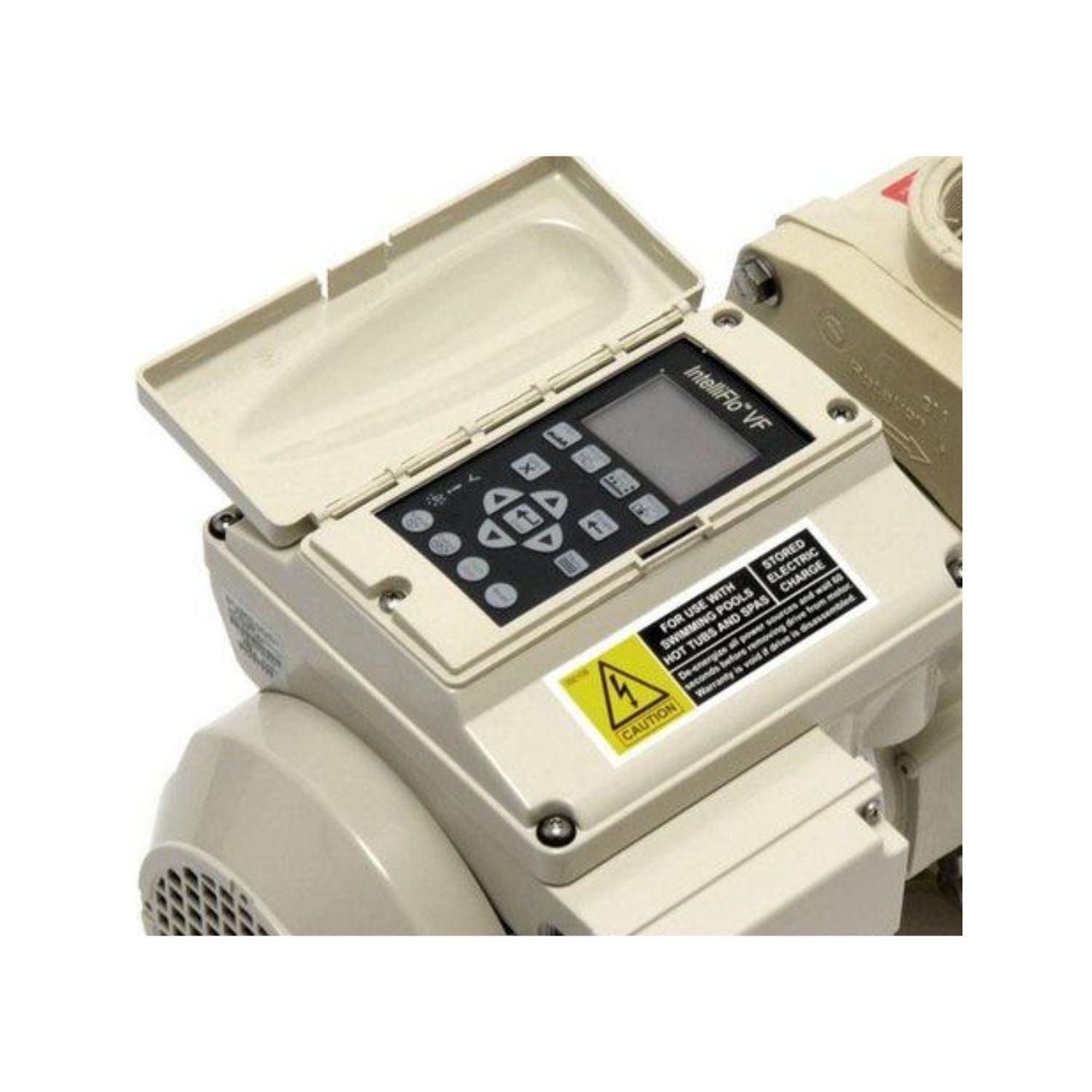

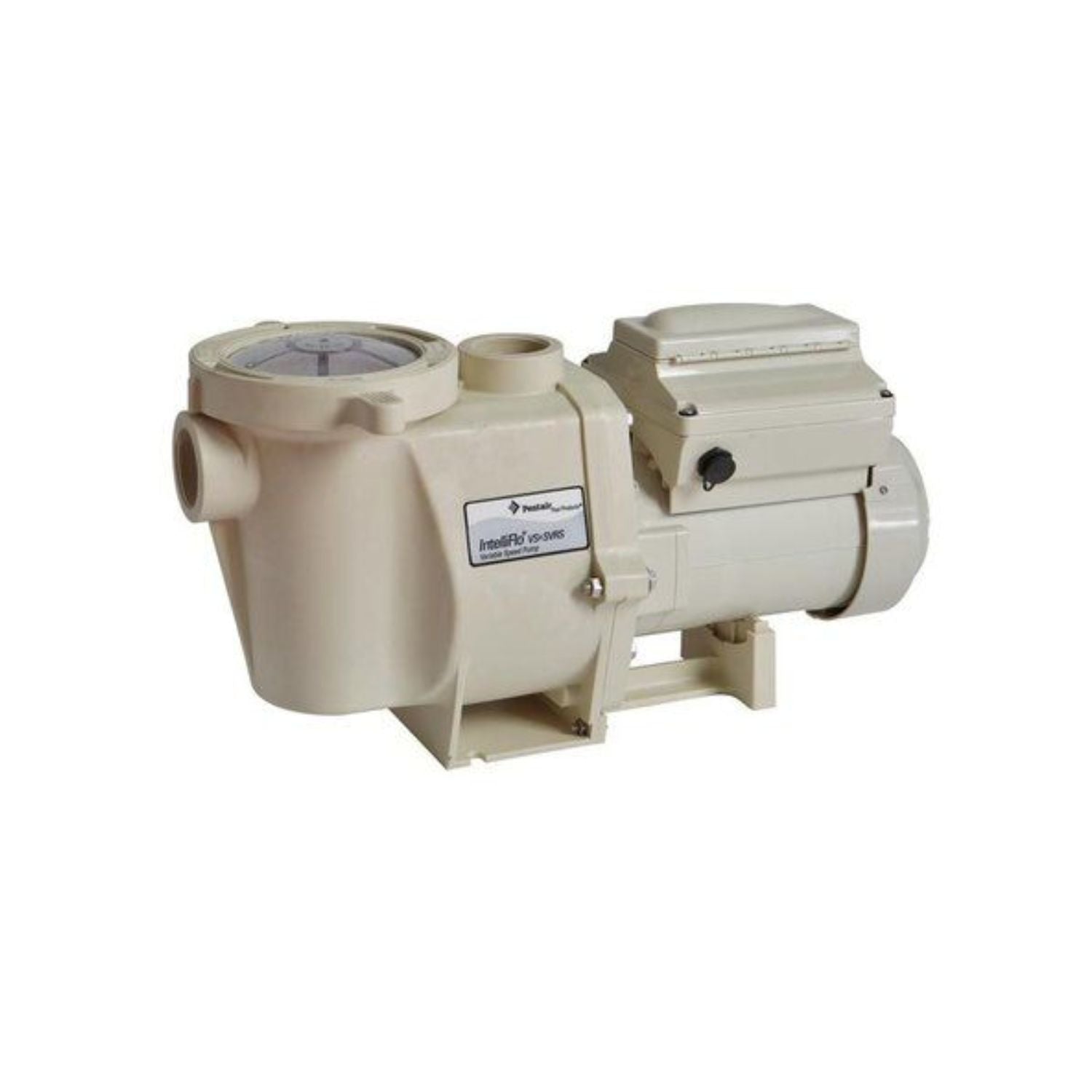

PENTAIR INTELLIFLO VS PUMP 3 HP VF - 011012
Regular price
$1,690.40
Request purchase access
Couldn't load pickup availability
INTELLIFLO REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| 1 | 357199 | Cam & Ramp® Plastic Clamp |
| 1 | 357150 | Black WhisperFlo® Plastic Clamp |
| 2 | 357151 | WhisperFlo See Through Lid |
| 3 | 350013 | 350013 WHISPERFLO STRAINER COVER ORING (AFTER 11/1998) |
| 3 | 352600 | Model 700 Lid O-Ring 6.25" x .25" |
| 3 | 805-0436 | 6" STRAINER COVER ORING |
| 4 | 070387 | Whisperflo Pump Strainer Basket 8" |
| 4 | B-199 | WHISPERFLO STRAINER BASKET |
| 4 | 319-3230 | 6" TRAP BASKET W/ HANDLE |
| 5 | 350015 | WhisperFlo Strainer Pot Volute |
| 5 | 357157 | Black Volute Replacement Housing |
| 6 | 192115 | 1/16" x 1/2" Buna N-70 Shore Drain Plug O-Ring |
| 6 | 35505-1116 | #2-014 Buna N674 O-Ring |
| 6 | 14930-0032 | Sta-Rite® Plastic Slide Valve Index Plate Kit |
| 6 | 39010000 | Impeller Lock O-Ring #2-014 |
| 6 | 805-0014 | O-RING, #014 - 48FR PUMP FACEPLATE PLUG |
| 7 | 071131 | Drain Plug Knob 1.25" x .75" x .5" |
| 7 | 357161 | WhisperFlo® Black Drain Plug .25" |
| 8 | 357243 | WhisperFlo® Almond Pot Assembly |
| 8 | 357244 | WhisperFlo® Black Pot Assembly |
| 9 | 071406 | 1.4" 20 Stainless Steel Hex Head nut |
| 10 | 072183 | 1/4" x 5/8" 18-8 Stainless Steel Flat Washer |
| 11 | 071657 | 071657 P26948 2/PK .25-20x1" SS HEX HEAD SCREW |
| 12 | 070927 | Almond Motor Support Foot 6.5" x 2.25" |
| 12 | 357159 | Motor Support Foot Insert |
| 13 | 070929 | Almond Foot Insert 4.5" x 2" x .5" |
| 13 | 357160 | Motor Support Foot Insert |
| 14 | 070429 | Stainless Steel Hex Head Bolt3/8-16 Threaded |
| 15 | 070430 | Stainless Steel Hex Head Cap Screw 18-8 3/8-16" x 1.25" |
| 16 | 072184 | Stainless Steel Flat Washer 18-8 3/8" x 7/8" x .5" |
| 17 | 070431 | Stainless Steel Hex Head Cap Screw 18-8 3/8-16" x 2" |
| 17 | 60-1014 | 3/8-16x1.75" SS HEX HEAD CAP SCREW |
| 18 | 350305S | Almond 10 Pole Motor 3.2Kw |
| 18 | 350306S | Black Intellipro Motor 23" x 9" x 12" |
| 19 | 356880Z | IntelliFlo® VSF Drive Kit before 10/2020 Almond |
| 19 | 356894Z | Drive, Variable Speed |
| 20 | 357527Z | Almond Top Cover Keypad Assembly |
| 20 | 358527Z | Black Keypad Cover Assembly |
| 21 | 400100 | Almond Keypad Cover Assembly Kit |
| 21 | 401100 | Black Control Cover Assembly Kit |
| 22 | 356904Z | Almond Keypad Relocation Kit |
| 22 | 356905Z | Black Wall Mount Keypad Relocation |
| 23 | 355685 | IntelliFlo® Hardware and Gasket Kit |
| 24 | 074564 | WhisperFlo® Almond Seal Plate |
| 24 | 350202 | Almond Seal Plate Kit with Gasket |
| 24 | 25357-300-000 | Whisper-Flo Pump Seal Plate |
| 24 | 357158 | WhisperFlo® Seal Plate |
| 25 | 357100 | Black Seal Plate Gasket |
| 25 | G-413-9 | BLACK WHISPERFLO SEAL PLATE GASKET |
| 25 | 357102 | Black Seal Plate Gasket |
| 25 | R0555900 | Body Gasket for JHP Series Pumps |
| 25 | 26100-357-100 | Whisper-Flo Seal Plate Gasket (357100) |
| 26 | 071734S | Shaft Seal Package Kit |
| 26 | PS-1000 | PS1000 SHAFT SEAL |
| 27 | 073131 | WhisperFlo® Impeller 3HP |
| 27 | 25305-131-000 | WF Pump Impeller 12 (073131) |
| 28 | 075713 | Rubber Impeller Washer |
| 29 | 071652 | Impeller Screw 1.25" x .5" x .32" |
| 30 | 072928 | WhisperFlo Diffuser 3HP |
| 31 | 071660 | Stainless Steel Socket Head Cap Screw Set |
| 32 | 355227 | Buna-N 70 Pump Diffuser O-Ring |
| 32 | O-359-9 | WHISPERFLO DIFFUSER ORING |
| 33 | 071403 | Bright Nickel Plated Hex Head Nut 3/8"-16 |
| 34 | 356922Z | Almond Drive Assembly with Keypad |
| 34 | 355868Z | Drive Kit Assembly |
