Home » PENTAIR INTELLIPPRO VS PUMP 3HP XF - 023055
PENTAIR WATER POOL AND SPA

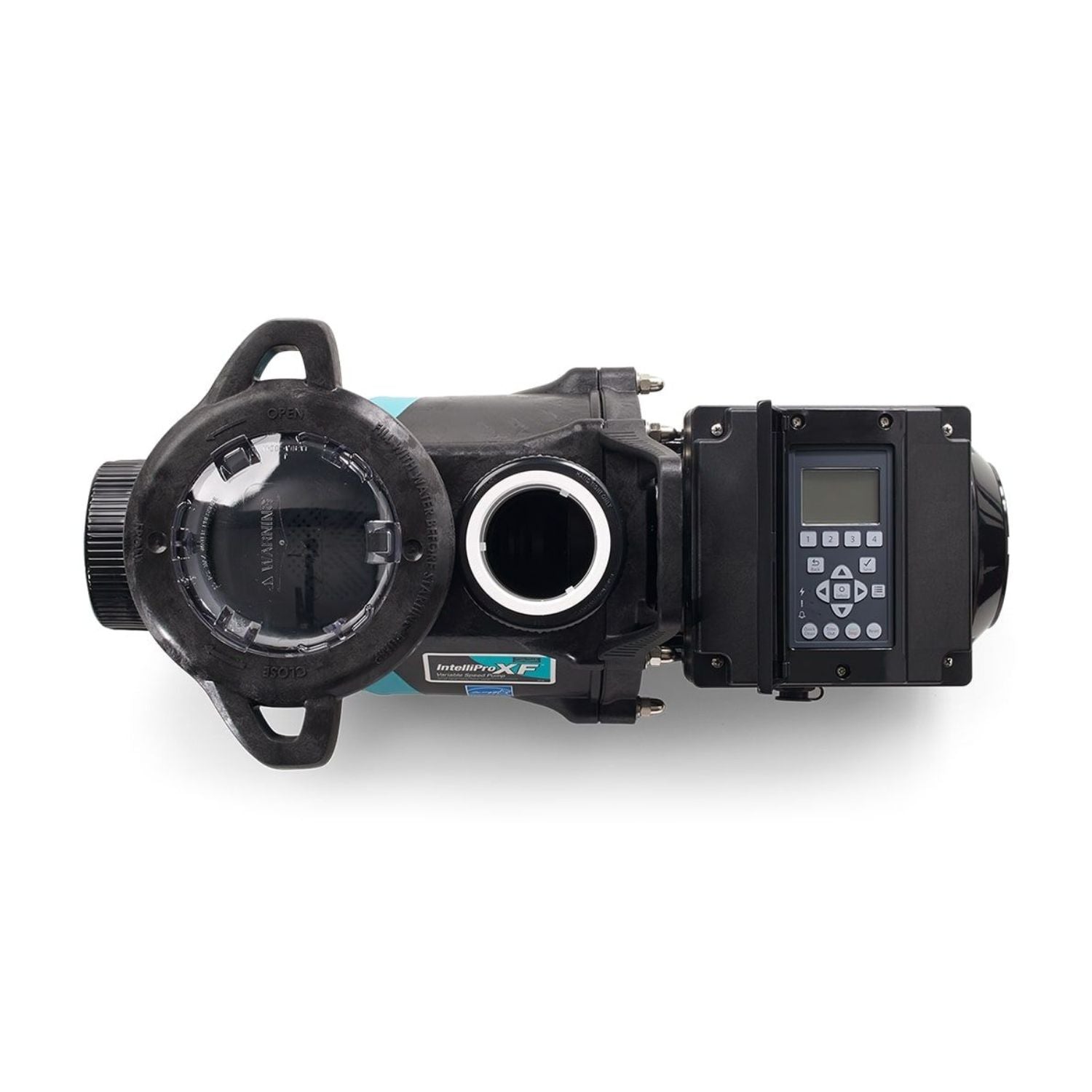

PENTAIR INTELLIPPRO VS PUMP 3HP XF - 023055

Out of stock
SKU: 023055
$1,387.22

Request purchase access

Click here to create an account
Email 305 384 6580

NTELLIPROXF® VARIABLE SPEED PUMP

REPLACEMENT PARTS







Item

Part No.

Description

INTELLIPRO XF PUMP

1

356893Z

Drive Kit

2

401655Z

Power End Kit

3

355685

Drive Hardware Kit

4

401000

Wet End Assembly

5

410020

Union Kit w/o Tap

6

358527Z

Keypad Assembly Kit

7

356892Z

Drive

8

350306S

Motor

9

357160

Motor Support Insert

10

401004Z

Motor Base

11

071413

Acorn Nut (Qty. 10)

12

U43-12SS

Lock Washer (Qty. 10)

13

072184

Flat Washer (Qty. 6)

14

401002

Seal Plate

15

17351-

0101S

Mechanical Seal

16

351446

Seal Plate O-Ring

17

400015

Impeller

18

37337-6080

Impeller Screw Set

19

400010

Diffuser

20

353323

Diffuser Screws

21

350336

Diffuser O-Ring

22

401006

Lid/Locking Ring Assembly

23

400007Z

Strainer Basket

24

35505-1440

Lid/Locking Ring O-RIng

25

410001

2.5" C-Clip Locking Ring (Qty. 2)

26

411000

2.5" Union Nut (Qty. 2)

27

410002

2.5" Union Adapter w/o Tap (Qty. 2)

28

410016Z

2.5" Diamond Seal Kit (Qty. 2)

29

192115

Drain Plug O-Ring (Qty. 2)

30

357161

Drain Plug (Qty. 2)







The IntelliPro XF Variable Speed Pool Pump gives pool owners the remarkable energy savings of variable speed technology combined with a super-efficient hydraulic design
It uses less energy than previous models of this pump to deliver the flow that larger, feature-rich pools require
This pump comes with innovations and operating features to make programming and monitoring easy.

Hydraulic isolator separates priming water from pumping water for faster priming and more turbulence-free flow for increased efficiency
TEFC design keeps motor shielded from the elements for extended life
8 speed settings and on-board scheduling with timers
LCD screen with rotatable keypad for easy programming
Union connectors are included - connecting directly to 2-1/2-in. or 3-in. plumbing
Diamond seals made of oxidation-resistant, self-retaining EPDM rubber for increased durability and tighter seal
