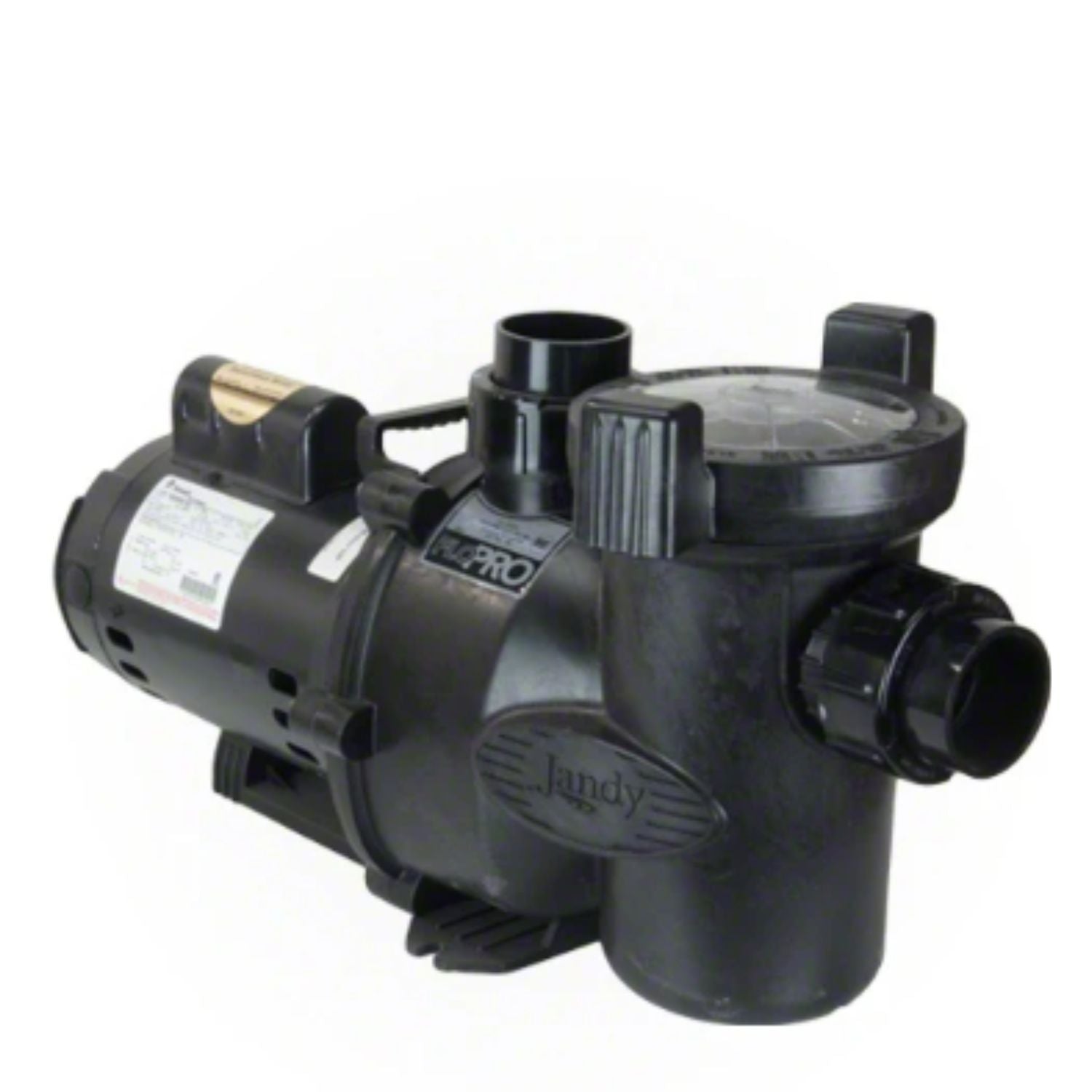

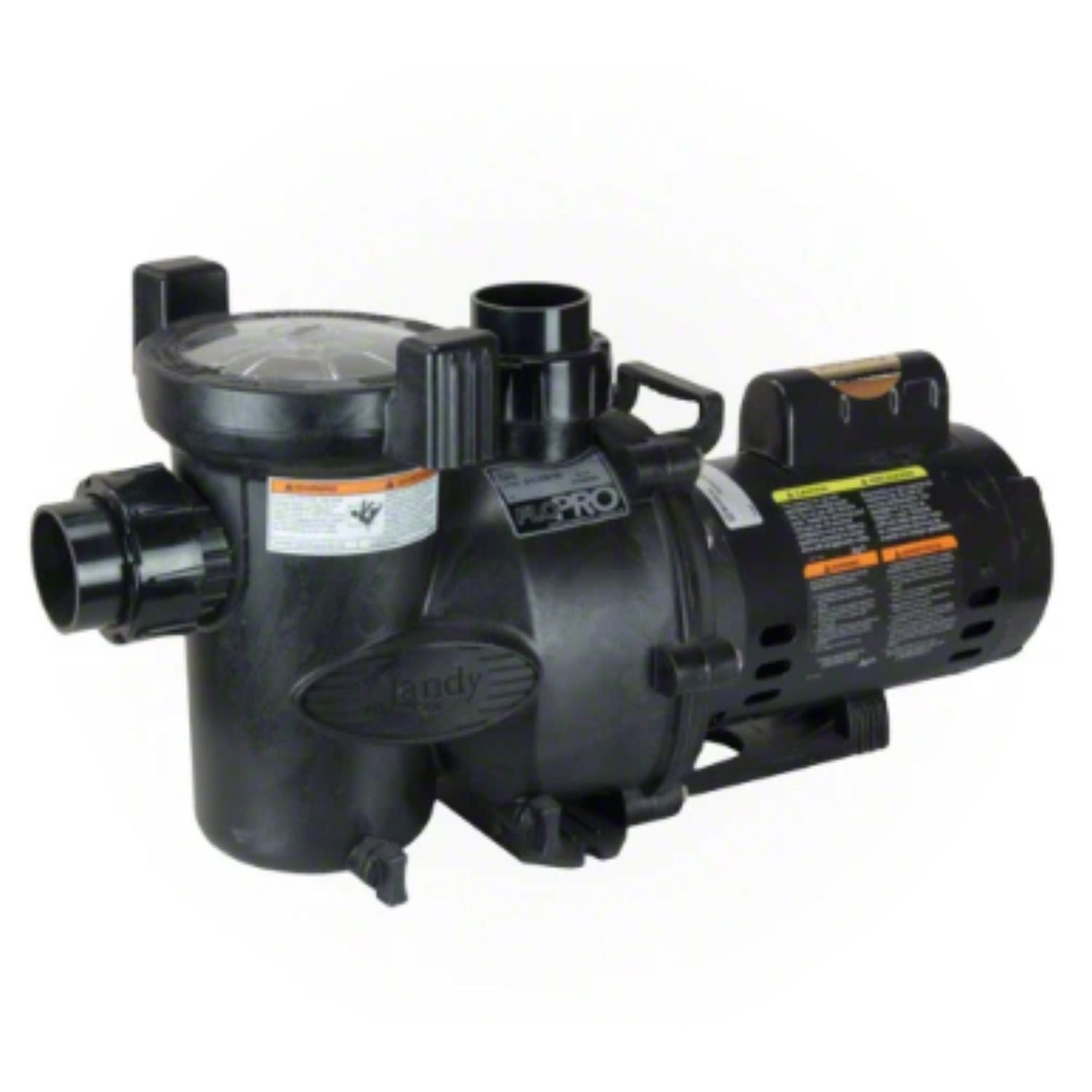

JANDY PLUSHP HIGH HEAD PUMP 3/4 HP - PHPM.75
Regular price
$706.73
Request purchase access
Couldn't load pickup availability
PlUSHP (PHPF/PHPM) SERIES REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| 1 | R0445108 | Motor, Single-Speed and Hardware, PHPF |
| 1 | R0445109 | Motor, Single-Speed and Hardware, PHPF |
| 1 | R0445110 | Motor, Single-Speed and Hardware, PHPF |
| 1 | R0445111 | Motor, Single-Speed and Hardware, PHPF |
| 1 | R0445112 | Motor, Single-Speed and Hardware, PHPF |
| 1 | R0479310 | Motor, Single-Speed and Hardware, PHPM |
| 1 | R0479311 | Motor, Single-Speed and Hardware, PHPM |
| 1 | R0479312 | Motor, Single-Speed and Hardware, PHPM |
| 1 | R0479313 | Motor, Single-Speed and Hardware, PHPM |
| 1 | R0479314 | Motor, Single-Speed and Hardware, PHPM |
| 1 | R0479307 | Motor, Two-Speed and Hardware, PHPM |
| 1 | R0479308 | Motor, Two-Speed and Hardware, PHPM |
| 1 | R0479309 | Motor, Two-Speed and Hardware, PHPM |
| 1 | R0479307 | Motor, Two-Speed and Hardware, PHPF |
| 1 | R0479308 | Motor, Two-Speed and Hardware, PHPF |
| 1 | R0479309 | Motor, Two-Speed and Hardware, PHPF |
| 2 | R0445200 | Backplate, PHPF/PHPM Mechanical Seal, Carbon Mechanical Seal, Ceramic O-Ring Bolts Washers |
| 3 | R0807204 | Impeller w/Screw, Backplate O-Ring,PHPF .50 1 |
| 3 | R0807203 | Impeller w/Screw, Backplate O-Ring,PHPF .75 1 |
| 3 | R0807202 | Impeller w/Screw, Backplate O-Ring,PHPF 1.0 1 |
| 3 | R0807201 | Impeller w/Screw, Backplate O-Ring,PHPF 1.5 1 |
| 3 | R0807200 | Impeller w/Screw, Backplate O-Ring,PHPF 2.0 1 |
| 3 | R0807204 | Impeller w/Screw, Backplate O-Ring,PHPM .75 1 |
| 3 | R0807203 | Impeller w/Screw, Backplate O-Ring,PHPM 1.0 1 |
| 3 | R0807202 | Impeller w/Screw, Backplate O-Ring,PHPM 1.5 1 |
| 3 | R0807201 | Impeller w/Screw, Backplate O-Ring,PHPM 2.0 1 |
| 3 | R0807200 | Impeller w/Screw, Backplate O-Ring,PHPM 2.5 1 |
| 3 | R0807202 | Impeller w/Screw, Backplate O-Ring,Two-Speed, PHPF 1.0 1 |
| 3 | R0807201 | Impeller w/Screw, Backplate O-Ring,Two-Speed, PHPF 1.5 1 |
| 3 | R0807200 | Impeller w/Screw, Backplate O-Ring,Two-Speed, PHPF 2.0 1 |
| 3 | R0807202 | Impeller w/Screw, Backplate O-Ring,Two-Speed, PHPM 1.5 1 |
| 3 | R0807201 | Impeller w/Screw, Backplate O-Ring,Two-Speed, PHPM 2.0 1 |
| 3 | R0807200 | Impeller w/Screw, Backplate O-Ring,Two-Speed, PHPM 2.5 1 |
| 4 | R0445400 | Diffuser Screw Washer O-Ring |
| 4 | R0622000 | Diffuser O-Ring |
| 5 | R0479400 | Mechanical Shaft Seal, New Style, Carbon and Ceramic |
| 5 | R0445500 | Mechanical Shaft Seal, Old Style, Carbon and Ceramic All 11 |
| 6 | R0448700 | Body, Pump, PHPF/PHPM |
| 7 | R0445700 | Motor Mounting Foot Assembly,PHPF/PHPM |
| 8 | R0448800 | Locking Ring Lid Lid Seal |
| 9 | R0448900 | Filter Basket |
| 10 | R0446000 | Plug, Drain O-Ring |
| 11 | R0449000 | Tailpiece (2" × 2 1/2") Union Nut O-Ring |
| 11A | R0522900 | Tailpiece (2" × 2 1/2") Union Nut O-Ring |
| 12 | R0449100 | Lid Seal w/ O-Ring |
| 13 | R0446300 | O-Ring, Backplate |
| 14 | R0449200 | O-Ring, Tailpiece |
| 15 | R0446500 | Diffuser/Impeller Hardware Screw w/ O-Ring, Self-sealing, Impeller Mounting |
| 16 | R0446600 | Backplate Hardware Bolts Washers |
| 17 | R0446700 | Motor Hardware Bolts Washers |
| 18 | R0446800 | Screws, Motor Mounting Foot |
| 19 | R0515400 | Screw w/ O-Ring, Self-Sealing |
