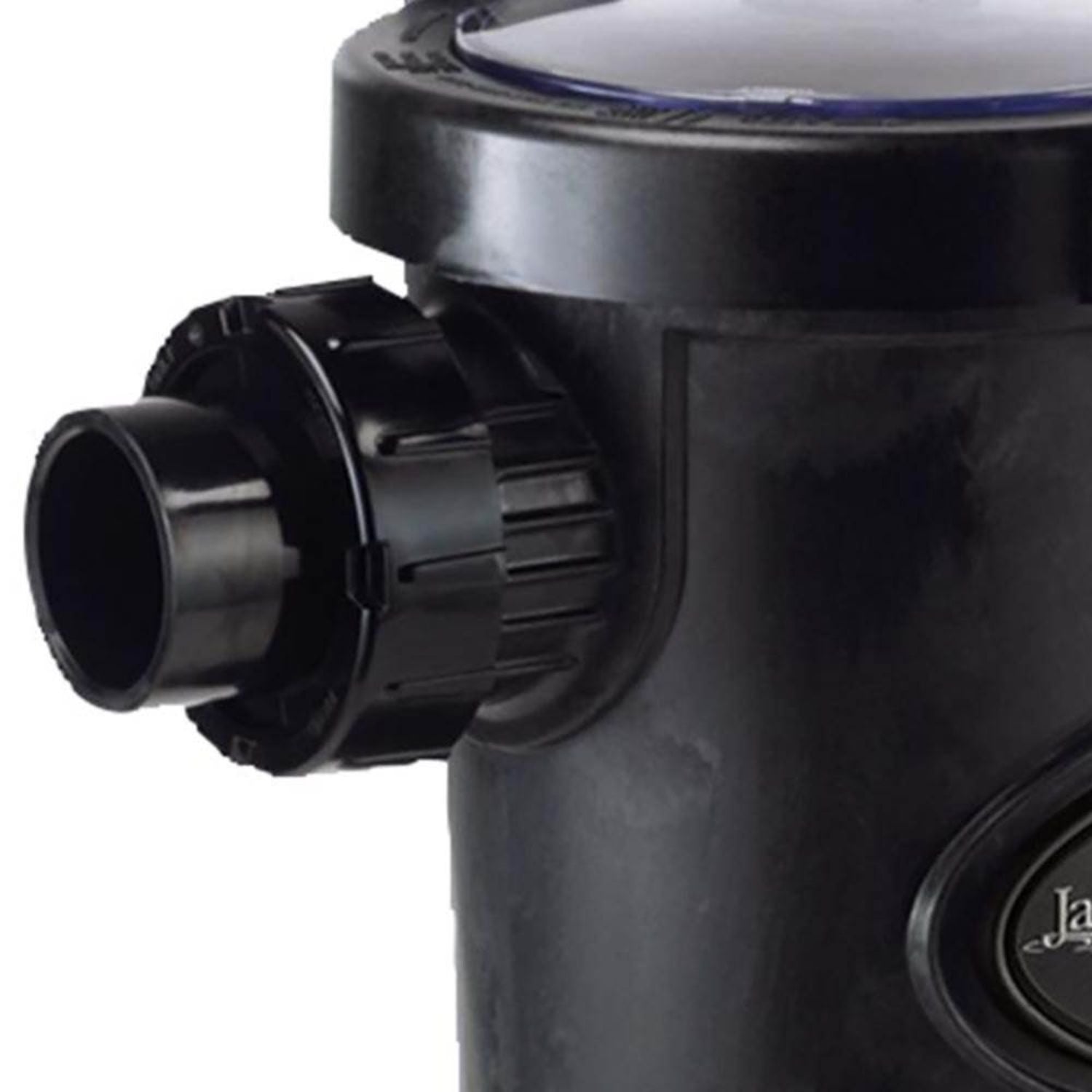

JANDY STEALTH PUMP 2.5 HP 2 SPD - SHPM2.5-2
Regular price
$1,170.88
Request purchase access
Couldn't load pickup availability
STEALTH (SHPF/SHPM) SERIES REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| 1 | R0445114 | Motor, single-speed SHPF |
| 1 | R0445101 | Motor, single-speed SHPF |
| 1 | R0445102 | Motor, single-speed SHPF |
| 1 | R0445103 | Motor, single-speed SHPF |
| 1 | R0445104 | Motor, single-speed SHPF |
| 1 | R0445105 | Motor, single-speed SHPF |
| 1 | R0490200 | Motor, single-speed SHPF |
| 1 | R0479301 | Motor, single-speed SHPM |
| 1 | R0479302 | Motor, single-speed SHPM |
| 1 | R0479303 | Motor, single-speed SHPM |
| 1 | R0479304 | Motor, single-speed SHPM |
| 1 | R0479305 | Motor, single-speed SHPM |
| 1 | R0479307 | Motor, Two-Speed SHPM |
| 1 | R0479308 | Motor, Two-Speed SHPM |
| 1 | R0479309 | Motor, Two-Speed SHPM |
| 1 | R0479101 | Motor, single-speed, SHPF, 3-Phase |
| 1 | R0479102 | Motor, single-speed, SHPF, 3-Phase |
| 1 | R0479103 | Motor, single-speed, SHPF, 3-Phase |
| 1 | R0479104 | Motor, single-speed, SHPF, 3-Phase |
| 1 | R0445113 | Motor, Two-Speed, SHPF |
| 1 | R0445106 | Motor, Two-Speed, SHPF |
| 1 | R0445107 | Motor, Two-Speed, SHPF |
| 2 | R0445200 | Backplate, SHPF/SHPM Mechanical Seal, Carbon Mechanical Seal, Ceramic O-Ring Bolts Washers |
| 2 | R0445201 | Backplate, SHPF/SHPM Mechanical Seal, Carbon Mechanical Seal, Ceramic O-Ring Bolts Washers |
| 3 | R0807204 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807203 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807202 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807201 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807200 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807205 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807207 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807204 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807203 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807202 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807201 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807200 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807202 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807201 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807200 | Impeller w/Screw, Backplate O-Ring, 2.0 |
| 3 | R0807202 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807201 | Impeller w/Screw, Backplate O-Ring |
| 3 | R0807200 | Impeller w/Screw, Backplate O-Ring |
| 4 | R0445400 | Diffuser Screw Washer O-Ring Diffuser Screw Washer O-Ring |
| 4 | R0445401 | Diffuser Screw Washer O-Ring Diffuser Screw Washer O-Ring |
| 4A | R0622000 | Diffuser O-Ring |
| 5 | R0479400 | Mechanical Shaft Seal, New Style, Carbon and Ceramic |
| 5 | R0445500 | Mechanical Shaft Seal, Old Style,Carbon and Ceramic |
| 6 | R0445601 | Body, Pump, SHPF/SHPM |
| 7 | R0445700 | Motor Mounting Foot Assembly, SHPF/SHPM Screws |
| 8 | R0445800 | Locking Ring Lid Seal |
| 9 | R0479000 | Blue Pressure Test O-Ring All 1 |
| 10 | R0445900 | Filter Basket All 1 |
| 11 | R0446000 | Plug, Drain O-Ring All 22 |
| 12 | R0446101 | Tailpiece (2" × 2 1/2") Union Nut O-Ring |
| 12 | R0446102 | Tailpiece (2" × 2 1/3") Union Nut O-Ring |
| 13 | R0446200 | Seal, Lid, and O-Ring |
| 14 | R0446300 | O-Ring, Backplate |
| 15 | R0446400 | O-Ring, Tailpiece |
| 16 | R0446500 | Diffuser/Impeller Hardware Screw w/ O-Ring, Self-sealing, Impeller Mounting Screw, Diffuser Mounting |
| 17 | R0446600 | Backplate Hardware Bolts Washers |
| 18 | R0446700 | Motor Hardware Bolts Washers |
| 19 | R0446800 | Screws, Motor Mounting Foot |
| 20 | R0515400 | Screw w/ O-Ring, Self-sealing |
