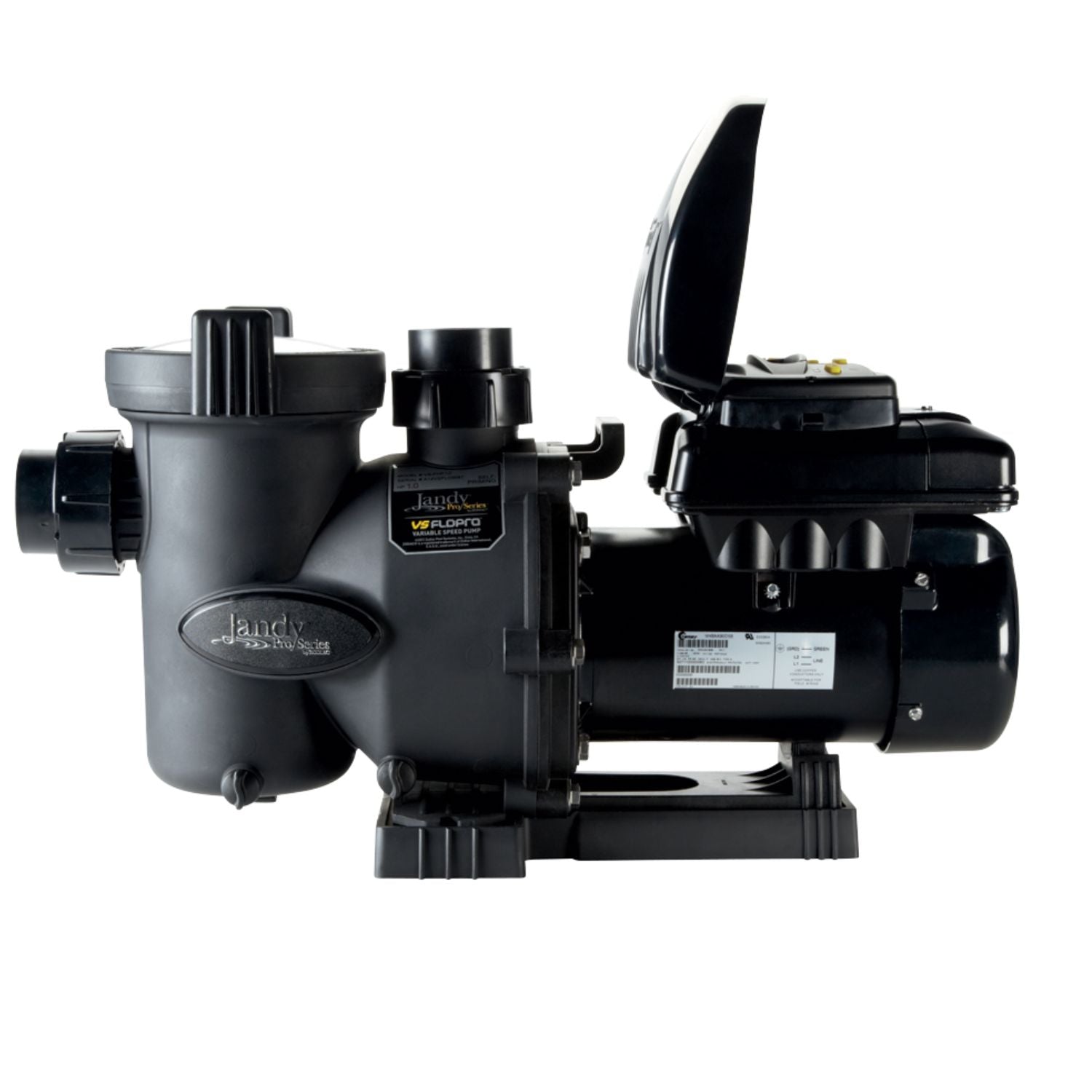

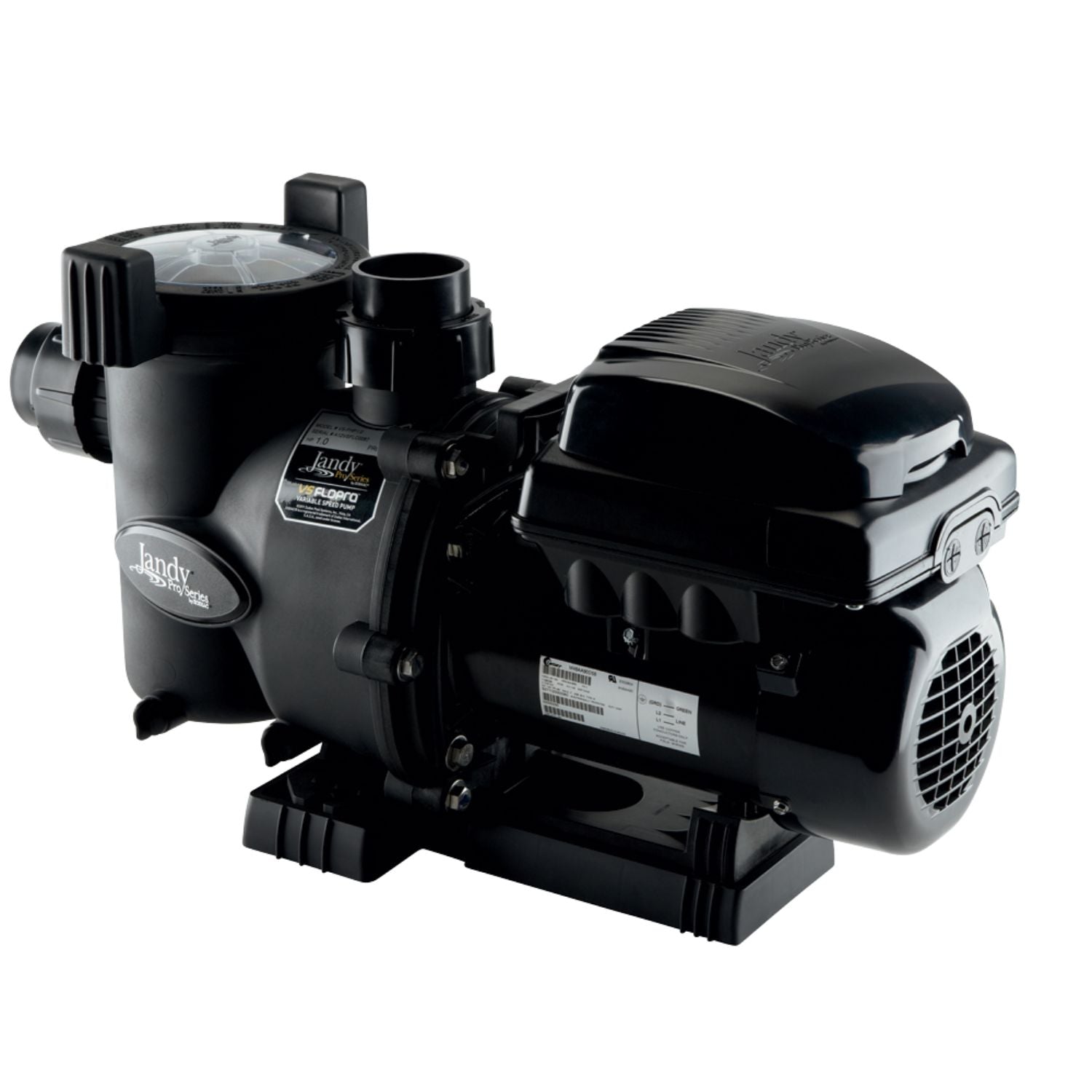

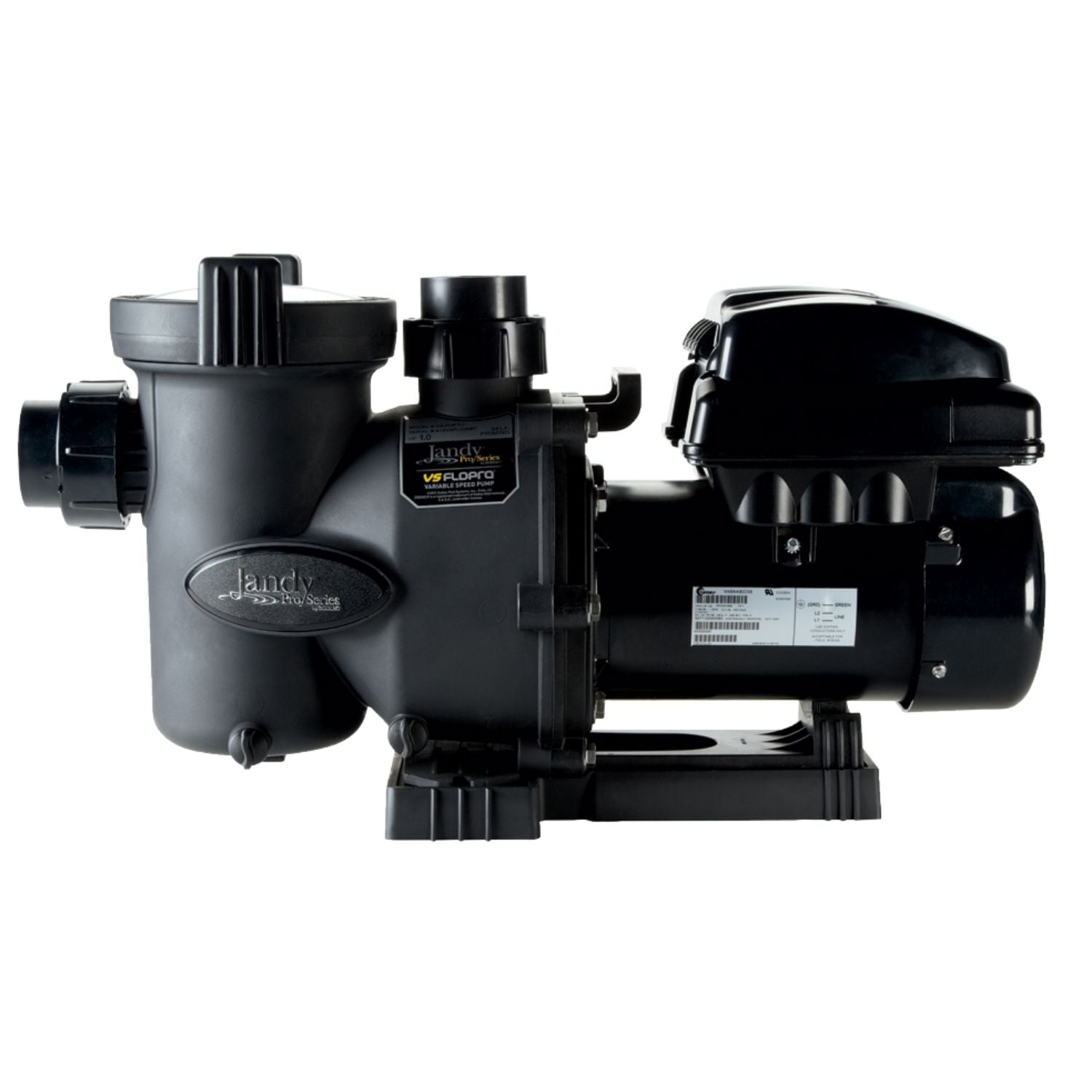

JANDY VS PUMP 1.65 THP NO CONTROLLER - VSFHP165AUT
Request purchase access
Couldn't load pickup availability
VS FloPro 0.85 and 1.65 HP
Variable-Speed Pumps
Replacement Parts
|
Item |
Part No |
Description |
|
1 |
R0856100 |
Motor and Drive, VSFHP085JEP |
|
1 |
R0856000 |
Motor and Drive, VSFHP085AUT |
|
1 |
R0571000 |
Motor and Drive, VSFHP165JEP |
|
1 |
R0670400 |
Motor and Drive, VSFHP165AUT |
|
2 |
Backplate, Bolts (6), Washers (6) |
|
|
3 |
R0479602 |
Impeller, Mounting Screw, Backplate |
|
3 |
R0479603 |
Impeller, Mounting Screw, Backplate |
|
4 |
R0479702 |
Diffuser, O-Ring, Mounting Screws |
|
4 |
Diffuser, O-Ring, Mounting Screws |
|
|
4A |
R0622000 |
Diffuser O-Ring |
|
5 |
Mechanical Seal, Carbon and Ceramic |
|
|
6 |
Pump Body, Backplate O-Ring |
|
|
7 |
R0479902 |
Motor Mounting Foot |
|
8 |
Lid, Locking Ring, O-Ring |
|
|
9 |
Pump Filter Basket |
|
|
10 |
Drain Plug w/ O-Ring (Set of 2) |
|
|
11 |
Union Nut (2), Tailpiece (2), O-Ring (2) |
|
|
12 |
Lid O-Ring |
|
|
13 |
Backplate O-Ring |
|
|
14 |
R0337600 |
Tailpiece O-Ring (Set of 2) |
|
15 |
R0480400 |
Diffuser/Impeller Hardware w/ Backplate |
|
16 |
R0480500 |
Backplate Bolts (6), Backplate Washers |
|
17 |
R0446700 |
Motor Mounting Bolts (4), Washers (4) |
|
18 |
R0486700 |
Small Adjustable Base with Spacers, FloPro Pumps |
|
19 |
R0515400 |
Impeller Mounting Screw w/ O-Ring |
|
20 |
R0587600 |
Wiring Access Cover Mounting Screw |
|
21 |
R0571600 |
JEP-R Controller Mounting Screws |
|
22 |
R0571400 |
Wiring Access Cover w/ Gaskets |
|
23 |
R0571300 |
Fan Cover w/ Mounting Screws (4) |
|
24 |
R0571500 |
Cover for on-board JEP-R Controller |
|
25 |
R0546400 |
Large Base (Optional), FloPro Pumps |
|
26 |
R0501101 |
Conduit Fitting, 1/2 NPT |
|
27 |
Variable-Speed Pump Controller 1 |
|
|
28 |
iAquaLink® App Controllable Variable-Speed Pump Controller (Not Included) 1 |
|
