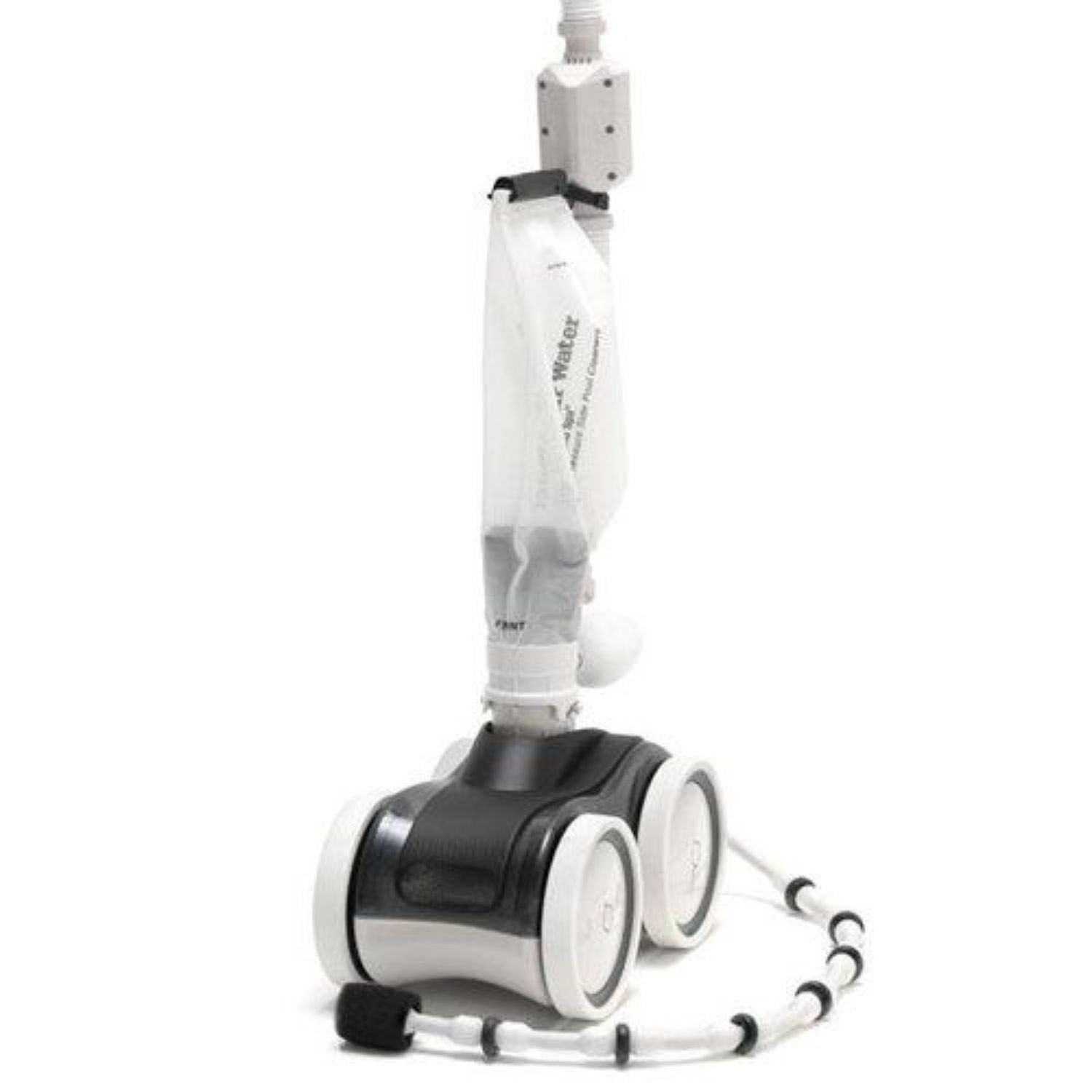

KREEPY KRAULY LEGEND II REPLACEMENT PARTS

1

360003

Top Cover

2

LXU145N

Main Frame

2

360016

Main Frame Grey

3

360004

Bottom Cover

3

360011

Bottom Cover Grey

4

LXU6

Feed Mast w/ O-Ring & Swivel Grey

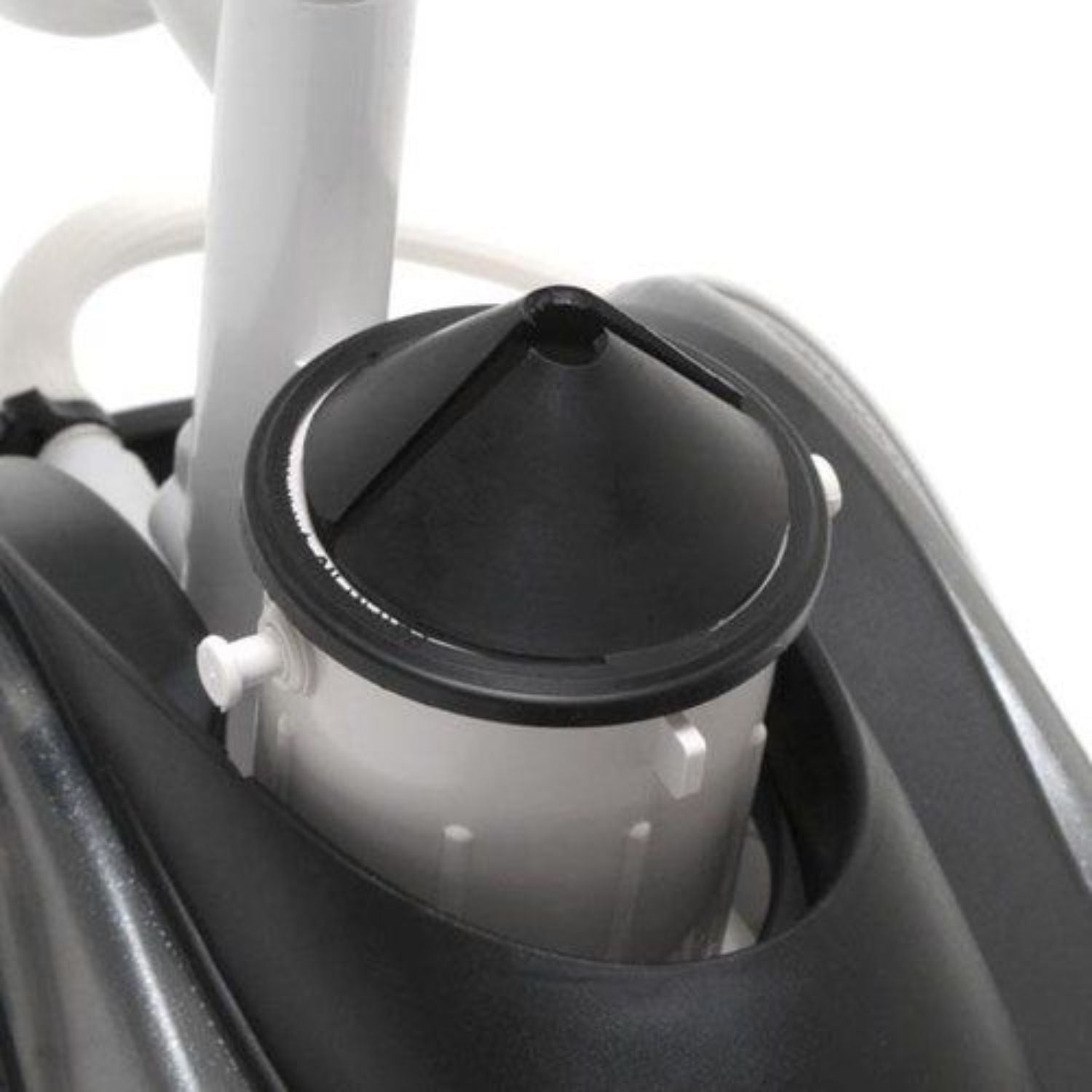

4

360017

Feed Mast w/ O-Ring & Swivel

5

EC86

Turbine Drive Shaft - Complete

6

EC83

Turbine Spacers

7

EC80

Turbine Bearings

8

EA40

Turbine Shaft Shield

9

LXC110

Turbine Cover w/Elbows

10A & B

EC120

Turbine/Venturi Hose 7-3/4 in. length

10A & B

LLC120G

Turbine/Venturi Hose 7-3/4 in. length - Grey

11

EB5L

Sweep Hose - Complete

11

LLB5G

Sweep Hose - Complete

- Grey

12

EB10

Sweep Hose - Wear Ring

13

EB25

Sweep Hose - Jet w/Collar

13

LLB25PM

Sweep Hose - Jet w/ Collar - Grey

14

370198

Sweep Hose Adjustment Screw

15

EA20

Ballast Float

15

LLA20G

Ballast Float - Grey

16

EH07

Sweep Hose - Hose Sleeve

16

LLH07PM

Sweep Hose - Hose Sleeve - Grey

17

EU15

Coarse Mesh Bag-Blue (Optional - not shown)

17

EU15G

Coarse Mesh Bag- Blue/ Grey Collar (Optional - not shown)

18

360002

Fine Mesh Bag - Mechanical Lock

18

360009

Fine Mesh Bag Grey - Mechanical Lock

18

EU16

Fine Mesh Bag - Velcro Brand Fastener

18

EU16G

Fine Mesh Bag - Velcro Brand Fastener - Grey

19

EU9

Debris Valve

20

EU7

O-ring for Feed Mast

21

E18

O-ring for Thrust Jet

22

EC130

Thrust Jet

23

EC135

Thrust Jet - Plate

23

LLC135G

Thrust Jet - Plate - Grey

24

EC65

Axle - Large Wheels

25

EC70

Axle Plate

26

370258Z

Axle Screw w/ Lock Washer

27

360006

Wheel w/o Bearings

28

EC60

Wheel Bearings - Only

29

EC55

Wheel Screw - Plastic

29

LLC55PM

Wheel Screw - Plastic - Grey

30

360007

Wheel - Rubber Tire

30

360012

Wheel - Grey Tire

31

360005

Hub Cap

31

360013

Hub Cap - Grey

32

EB15

Hose Clamp

33

EC40

Screw

34

EC64

Wheel - Plastic Washer

35

EC131

Thrust Jet Repair Kit, includes: EC130, EC135 and E18

35

360014

Thrust Jet Repair Kit - Grey, includes: EC130, LLC135 and E19

36

EA30

Screw for EA40 and LXC110

37

EU147

Snap Fit Vac Tube Posts

37

LLU147G

Snap Fit Vac Tube Posts

- Grey

38

EU79

Nut & Bolt - Feed Mast to Vac Tube

39

LXU8

Venturi Jets

40

EU80

Screw - Top and Bottom Cover

41

370017

Sweep Hose - Scrubber

–

EH09C

Sweep Hose Weight (Optional

- not shown)
