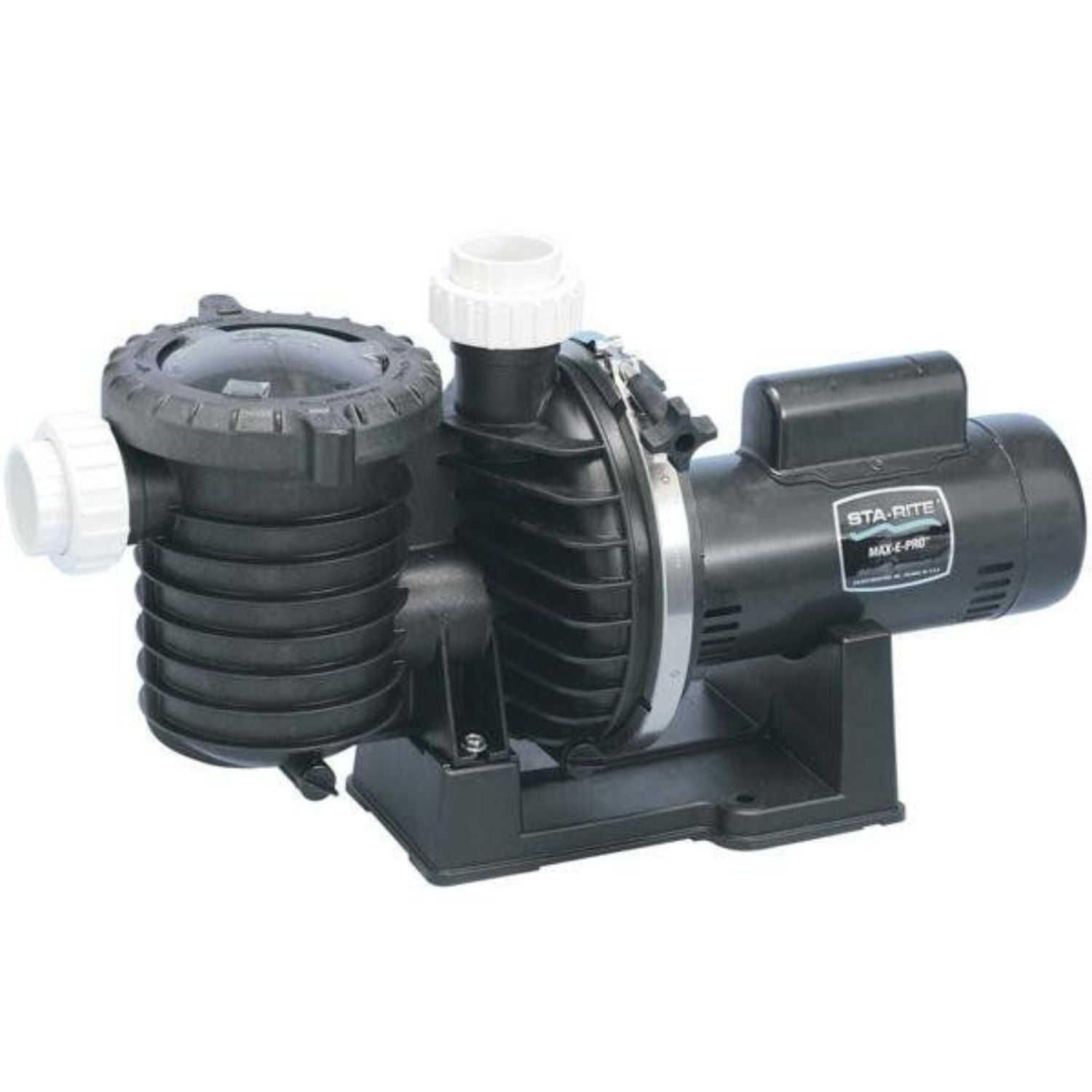

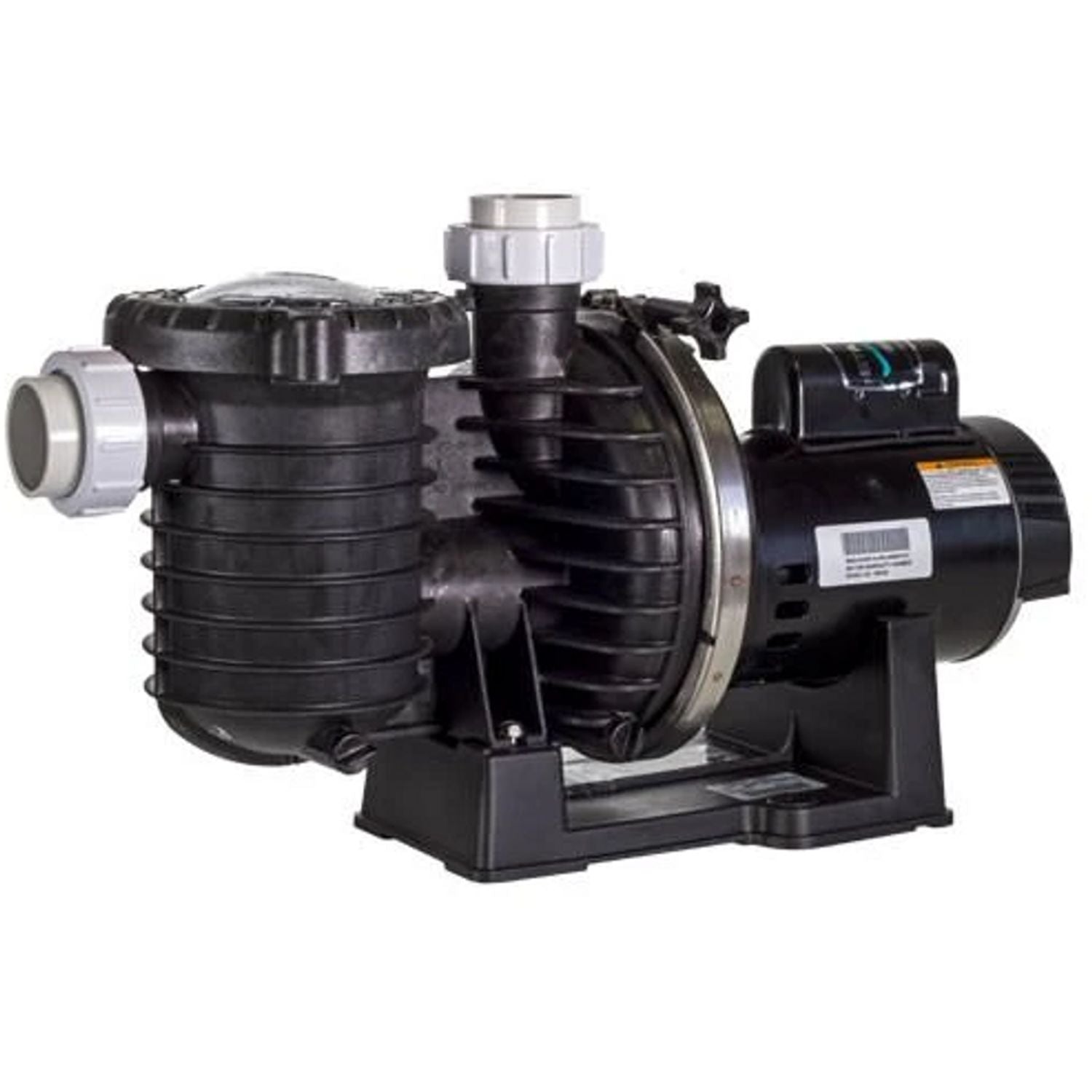

PENTAIR MAX-E-PRO PUMP SINGLE/SPEED 2HP - P6EA6G-207L
Regular price
$737.08
Request purchase access
Couldn't load pickup availability
MAX-E-PRO SERIES PUMP REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| 1 | 355025S | Motor |
| 2 | U30-692SS | #10-32 x 1/2 in. Screw |
| 2A | U43-22SS | Lock Washer |
| 3 | U17-568 | Bonding Lug |
| 4 | 17351-0009 | Water Slinger |
| 5 | C203-194P | Seal Plate Kit (Incl. Part Nos. 6, 7) |
| 6 | U9-228A | O-Ring (Round) |
| 6 | 375099Z | O-Ring (Square) |
| 6 | 0-240-0 | |
| 7 | 17351-0101S | Shaft Seal, EDPM black |
| 7 | PS-201 | |
| 7 | PS-3868 | |
| 8 | WC36-22 | Clamp Knob |
| 9 | C19-37A | Clamp |
| 10 | C105-238PDBA | Impeller |
| 10A | 35505-1426 | Impeller Screw O-Ring |
| 10B | Chart | Impeller Screw |
| 11 | 56 C1-271P | Diffuser |
| 12 | U9-374 | Diffuser O-Ring |
| 12 | 357098Z | Diffuser O-Ring (Blue Coating) |
| 12 | 0-83 | |
| 13 | U43-21SS | #8 Lock Washer |
| 14 | U30-542SS | Screw (w/ C1-271P1 Diffuser) |
| 15 | 17307-0110S | Tank Body Assembly 2 |
| 16 | 17307-0111S | Trap Cover Assembly 1 |
| 17 | 35505-1440 | Trap O-Ring |
| 17 | 0-12-0 | |
| 18 | C8-58P | Basket |
| 18 | B-215 | Basket |
| 19 | U178-920P | 1/4 in. NPT Drain Plug |
| 19 | U9-359 | Drain Plug O-Ring |
| 20 | U43-41SS | Base Washer |
| 21 | U30-918SS | Base Screw |
| 22 | C4-78P | Base w/ Motor Pad |
| 22 | C104-79P | Base w/ Motor Pad (3 HP only) |
| 23 | C35-43 | Motor Pad |
| 23 | C35-44 | Motor Pad (3 HP only) |
| 24 | U30-74SS | 3/8-16 x 1 in. Hex Hd. Screw |
