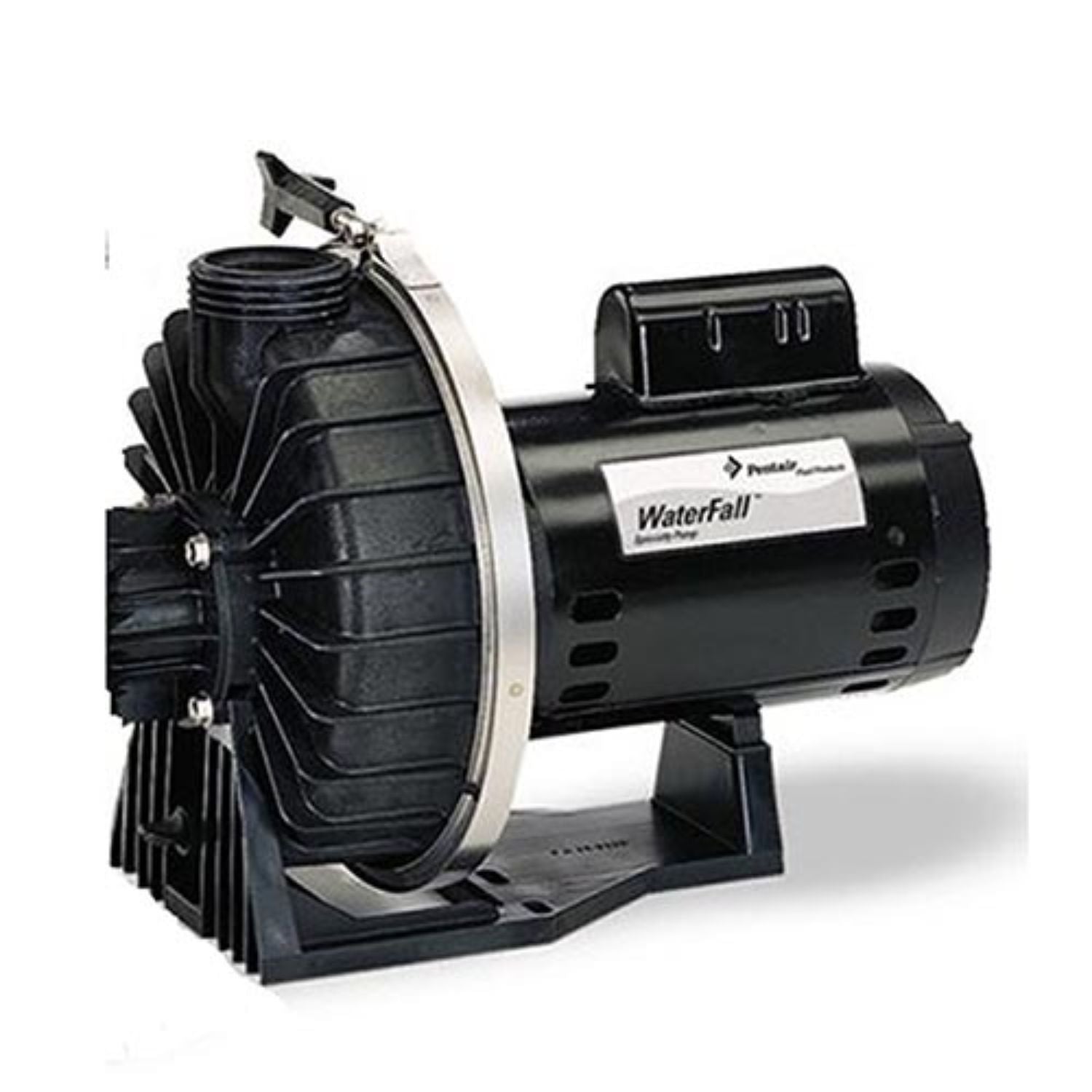

PENTAIR PMP WATERFALL 230V AFP-150 - 340352
Regular price
$1,164.18
Request purchase access
Couldn't load pickup availability
WATERFALL SPECIALTY PUMP REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| 1 | 355218S | Motor, AF-75 & 120, AFP-75 & 120, 37 Ibs. |
| 1 | 355222S | Motor, AF-180, AFP-150 & 180, 35 Ibs. |
| 2 | 355004 | Plate, seal |
| 3 | 355317 | Plate, mounting AF-75, AFP-75 |
| 3 | 355495 | Plate, mounting AF-120 & 180, AFP-120, 150 & 180 |
| 4 | 354545S | Seal, 5/8 in. mechanical, PS 200 |
| 5 | 355544 | Impeller AF-75, AFP-75 |
| 5 | 355068 | Impeller AF-120, AFP-120 |
| 5 | 355221 | Impeller AF-180, AFP-150 & 180 |
| 6 | 355545 | Diffuser AF-75, AFP-75 |
| 6 | 355069 | Diffuser AF-120, AFP-120 |
| 6 | 355140 | Diffuser AF-180, AFP-150 & 180 |
| 7 | 355320 | Band, clamp assembly complete |
| 8 | 355302 | Housing, front |
| 9 | U30-74SS | Screw, 3/8 in.-16 SS hex hd., 4 req. |
| 10 | 355389 | Screw, impeller locking |
| 11 | 355305 | Base, pump 1 |
| 11B | 355385 | Adapter, 5-5/8 in. dia. motor 2 |
| 12 | 355334 | Screw, No. 8-32 x 1 in. AF-75 & 120, AFP-75 & 120, 3 req. |
| 12 | 355141 | Screw, No. 8-32 x 1-1/2 in. AF-180, AFP-150 & 180 |
| 13 | 355331 | O-ring, diffuser |
| 14 | 355329 | O-ring, front housing |
| 15 | 355335 | Screw, 5/16, 18 x 1/2 in. SS hex wsh. hd., (AF models only) |
| 16 | 192115 | O-ring, drain plug |
| 17 | 154699 | Plug, 1/2 in. drain |
| 20 | 175025 | Knob (fits clamp w/ captured T-bolt only) |
| 21 | 355330 | O-ring, strainer pot flange |
| 22 | 354265 | Screw, 5/16 in., 18 hex wsh. hd., 4 req. |
| 23 | 357161 | Plug, 1/4 in. drain |
| 24 | 192115 | O-ring, drain plug |
| 25 | 355300 | Strainer pot AFP-75, AFP-120 & 150 |
| 26 | 355318 | Basket, plastic strainer AFP-75 & 120 |
| 26 | 355441 | Basket, SS strainer AFP-150 |
| 26 | 355901 | Basket, SS strainer AFP-180 |
| 27 | 350013 | O-ring, lid AFP-75, AFP-120 & 150 |
| 27 | 152509 | Seal, lid AFP-180 |
| 28 | 355301 | Lid, strainer pot AFP-75, AFP-120 & 150 |
| 28 | 355902 | Lid, strainer pot AFP-180 |
| 29 | 355142 | Bushing, impeller nose AF-180, AFP-150 & 180 |
| 31 | 154527 | Wrench, 8-1/2 in., strainer pot AFP-180 |
