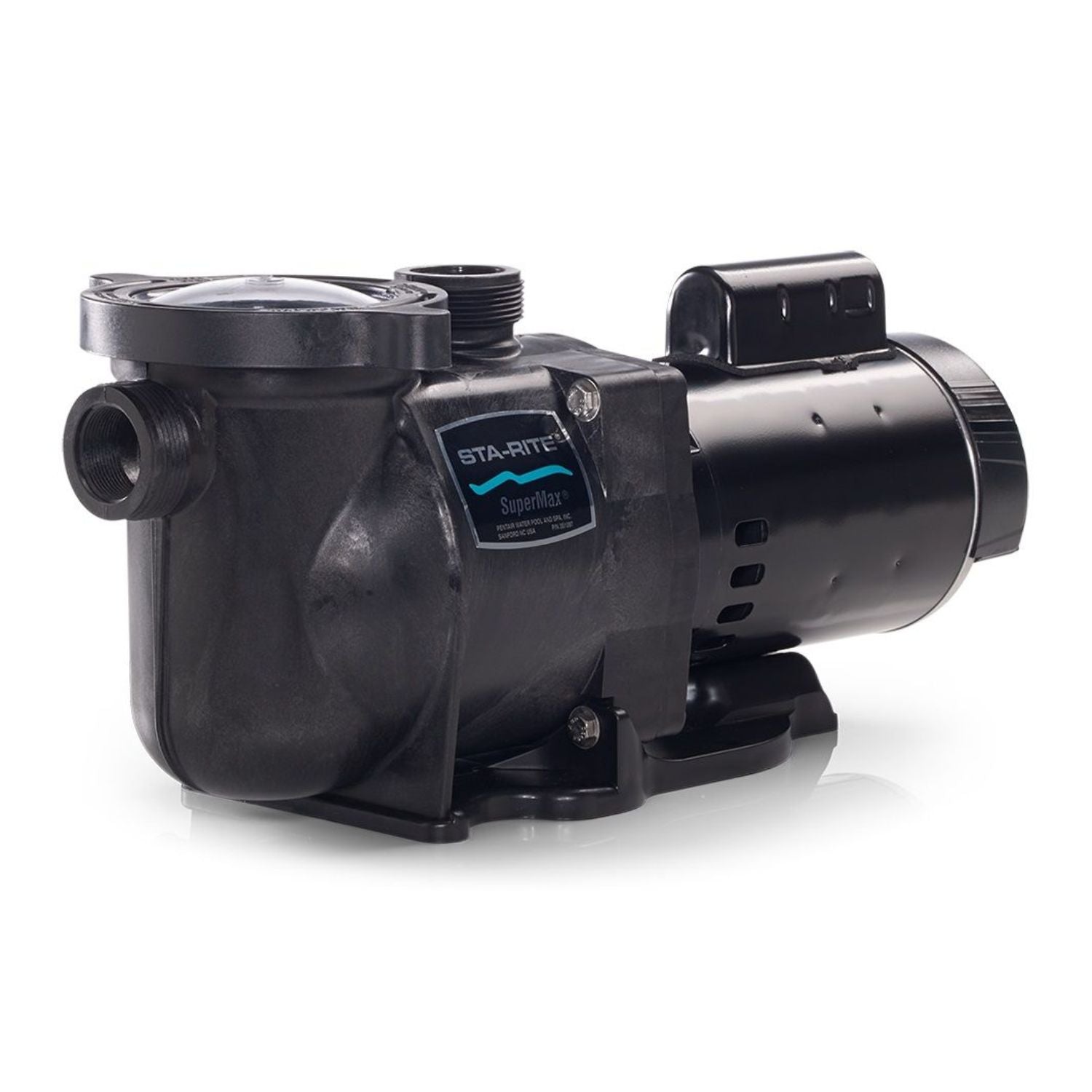

PENTAIR SUPERMAX PUMP 0.5 HP - PHK2RA6C-100L
Regular price
$359.63
Request purchase access
Couldn't load pickup availability
SUPERMAX PUMP REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| SINGLE SPEED SUPERMAX MOTORS | ||
| 1 | 355019S | 1/2 HP Motor, SQFL, 1 sp, 1 ph, 60 hz, 115/208-230, Black |
| 1 | 355019S | 3/4 HP Motor, SQFL, 1 sp, 1 ph, 60 hz, 115/208-230, Black |
| 1 | 355021S | 1 HP Motor, SQFL, 1 sp, 1 ph, 60 hz, 2115/208-230, Black |
| 1 | 355023S | 1-1/2 HP Motor, SQFL, 1 sp, 1 ph, 60 hz, 115/208-230, black |
| 1 | 355025S | 2 HP Motor, SQFL, 1 sp, 1 ph, 60 hz, 115/208-230, Black |
| 1 | 355027S | 2-1/2 HP Motor, SQFL, 1 sp, 1 ph, 60 hz, 208-230, Black |
| 2 SPEED SUPERMAX MOTORS | ||
| 1 | 355232S | 1 HP Motor, SQFL, 2 sp, 1 ph, 60 hz, 230V, Black |
| 1 | 355376S | 1-1/2 HP Motor, SQFL, 2 sp, 1 ph, 60 hz, 230V, Black |
| 1 | 355377S | 2 HP Motor, SQFL, 2 sp, 1 ph, 60 hz, 230V, Black |
| ENERGY EFFICIENT SUPERMAX MOTORS | ||
| 1 | 355009S | 1/2 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 115/208-230, black |
| 1 | 355009S | 3/4 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 115/208-230, black |
| 1 | 355009S | 1 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 115/208-230, black |
| 1 | 355011S | 1.5 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 115/208-230, black |
| 1 | 355013S | 2 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 208-230, black |
| 1 | 355015S | 2.5 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 208-230, black |
| 2 | 355612 | SuperMax Seal Plate |
| 2 | 356012 | SuperFlo Seal Plate |
| 3 | 351094 | Black SuperMax Base |
| 4 | 351090 | Clamp, Ramp & Cam, Black |
| 5 | 350091 | Lid |
| 6 | 357255 | O-ring, Lid #2-357 |
| 7 | 351089 | Volute, Black |
| 8 | 350093 | Adapter, 2 req. |
| 9 | 270141 | Nut, 2 req. |
| 10 | 192115 | O-Ring Drain Plug, 2 req. |
| 11 | 357161 | Drain Plug, 2 req. |
| 12 | 355621 | Scew 3/4-16 x 2-1/4 HEX HD,4 req. |
| 13 | 72184 | Washer 3/8 in. S/S, 4 req. |
| 14 | 355619 | O-Ring Seal Bracket |
| 15 | 6020018 | O-Ring Adapter #2-226, 2 req. |
| 16 | 355030 | Seal Diffuser |
| 17 | 355334 | Screw #8-32 HEX Washer HD, 3 req. |
| SUPERMAX DIFFUSERS | ||
| 18 | 355617 | Diffuser, 1/2 HP |
| 18 | 355617 | Diffuser, 3/4 HP |
| 18 | 355617 | Diffuser, 1 HP |
| 18 | 355618 | Diffuser, 1-1/2 HP |
| 18 | 355618 | Diffuser, 2 HP |
| 18 | 350170 | Diffuser, 2-1/2 HP |
| 19 | U30-74SS | Hex head screw, 3/8, 16 SS, 4 req. |
| SUPERMAX IMPELLERS | ||
| 20 | 355043 | Impeller 1/2 HP |
| 20 | 355043 | Impeller 3/4 HP |
| 20 | 355067 | Impeller 1 HP |
| 20 | 355074 | Impeller 1-1/2 HP |
| 20 | 355086 | Impeller 2 HP |
| 20 | 355093 | Impeller 2-1/2 HP |
| 20 | 355067 | Impeller 1 HP, 2-SPD |
| 20 | 355074 | Impeller 1-1/2 HP, 2-SPD |
| 20 | 355086 | Impeller 2 HP, 2-SPD |
| 21 | 355389 | Screw, Impeller Locking |
| 22 | 354545S | Seal Set |
| 23 | 355667 | Basket, Large |
| 24 | 351157 | SuperMax Union Kit (includes 2 of Items 8, 9, & 15) |
| NOT SHOWN | ||
| 79129900 | 2-Speed Toggle Switch | |
| 401014Z | Motor End Cap and Screw | |
