Home » PENTAIR SUPERMAX PUMP 2 HP - PHK2RA6G-104L
PENTAIR WATER POOL AND SPA

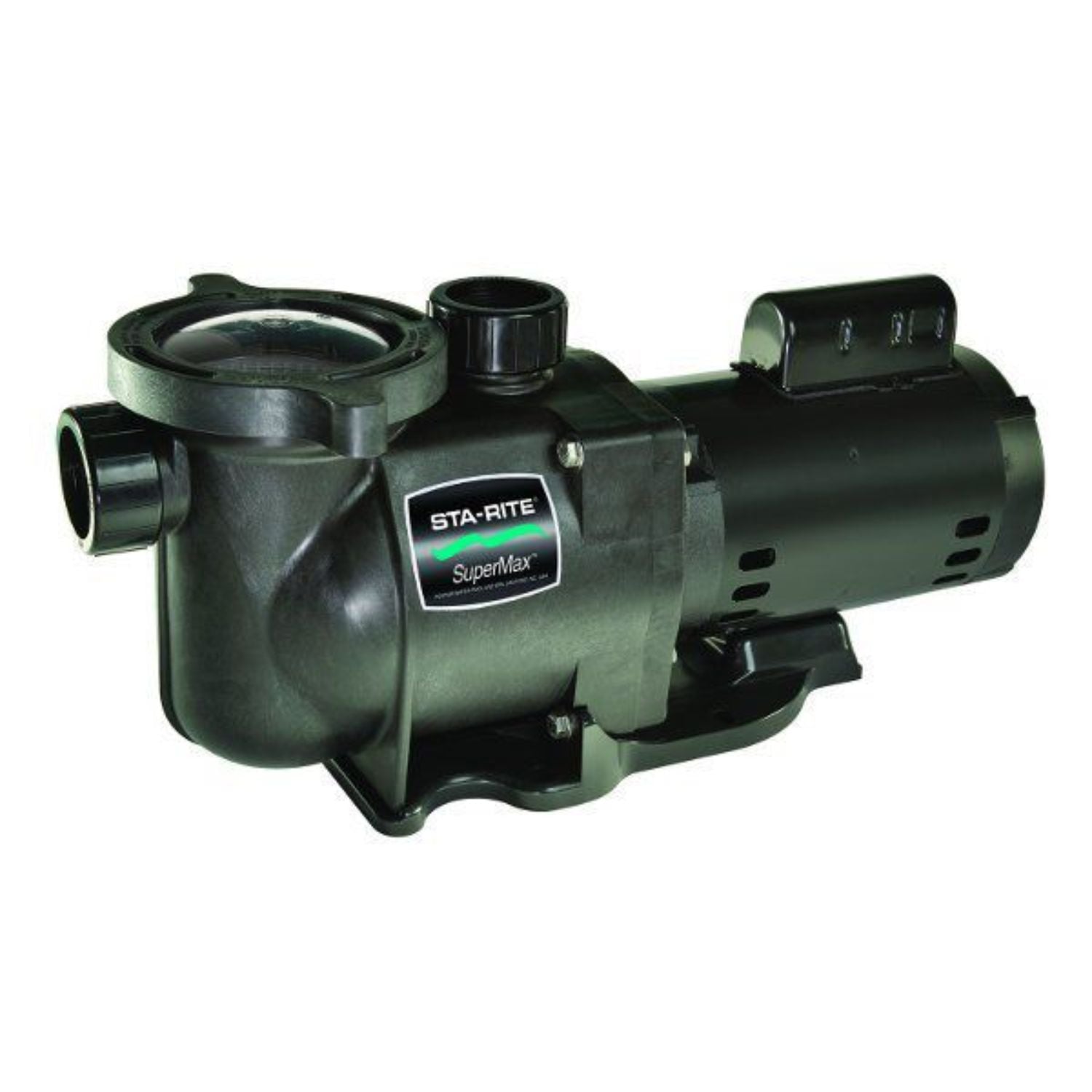

PENTAIR SUPERMAX PUMP 2 HP - PHK2RA6G-104L

Out of stock
SKU: PHK2RA6G-104L
$531.31

Request purchase access

Click here to create an account
Email 305 384 6580

SUPERMAX PUMP REPLACEMENT PARTS

Legend Part # Description
SINGLE SPEED SUPERMAX MOTORS
1 355019S 1/2 HP Motor, SQFL, 1 sp, 1 ph, 60 hz, 115/208-230, Black
1 355019S 3/4 HP Motor, SQFL, 1 sp, 1 ph, 60 hz, 115/208-230, Black
1 355021S 1 HP Motor, SQFL, 1 sp, 1 ph, 60
hz, 2115/208-230, Black
1 355023S 1-1/2 HP Motor, SQFL, 1 sp, 1 ph, 60 hz, 115/208-230, black
1 355025S 2 HP Motor, SQFL, 1 sp, 1 ph, 60
hz, 115/208-230, Black
1 355027S 2-1/2 HP Motor, SQFL, 1 sp, 1 ph, 60 hz, 208-230, Black

2 SPEED SUPERMAX MOTORS
1 355232S 1 HP Motor, SQFL, 2 sp, 1 ph, 60 hz, 230V, Black
1 355376S 1-1/2 HP Motor, SQFL, 2 sp, 1 ph, 60 hz, 230V, Black
1 355377S 2 HP Motor, SQFL, 2 sp, 1 ph, 60 hz, 230V, Black

ENERGY EFFICIENT SUPERMAX MOTORS
1 355009S 1/2 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 115/208-230, black
1 355009S 3/4 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 115/208-230, black
1 355009S 1 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 115/208-230, black
1 355011S 1.5 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 115/208-230, black
1 355013S 2 HP Motor SQFL, 1 Speed, 1
phase, 60 Hz, 208-230, black
1 355015S 2.5 HP Motor SQFL, 1 Speed, 1 phase, 60 Hz, 208-230, black

2 355612 SuperMax Seal Plate
2 356012 SuperFlo Seal Plate
3 351094 Black SuperMax Base
4 351090 Clamp, Ramp & Cam, Black
5 350091 Lid
6 357255 O-ring, Lid #2-357
7 351089 Volute, Black
8 350093 Adapter, 2 req.
9 270141 Nut, 2 req.
10 192115 O-Ring Drain Plug, 2 req.
11 357161 Drain Plug, 2 req.
12 355621 Scew 3/4-16 x 2-1/4 HEX HD,4 req.
13 72184 Washer 3/8 in. S/S, 4 req.
14 355619 O-Ring Seal Bracket
15 6020018 O-Ring Adapter #2-226, 2 req.
16 355030 Seal Diffuser
17 355334 Screw #8-32 HEX Washer HD, 3 req.

SUPERMAX DIFFUSERS
18 355617 Diffuser, 1/2 HP
18 355617 Diffuser, 3/4 HP
18 355617 Diffuser, 1 HP
18 355618 Diffuser, 1-1/2 HP
18 355618 Diffuser, 2 HP
18 350170 Diffuser, 2-1/2 HP
19 U30-74SS Hex head screw, 3/8, 16 SS, 4 req.

SUPERMAX IMPELLERS
20 355043 Impeller 1/2 HP
20 355043 Impeller 3/4 HP
20 355067 Impeller 1 HP
20 355074 Impeller 1-1/2 HP
20 355086 Impeller 2 HP
20 355093 Impeller 2-1/2 HP
20 355067 Impeller 1 HP, 2-SPD
20 355074 Impeller 1-1/2 HP, 2-SPD
20 355086 Impeller 2 HP, 2-SPD
21 355389 Screw, Impeller Locking
22 354545S Seal Set
23 355667 Basket, Large
24 351157 SuperMax Union Kit  (includes 2 of Items 8, 9, & 15)

NOT SHOWN
  79129900 2-Speed Toggle Switch
  401014Z Motor End Cap and Screw

High Performance: Equipped with a 2 HP motor, this pump delivers exceptional water circulation and efficiency for residential swimming pools and spas.
Quiet Operation: Designed for quiet operation, making it ideal for residential settings where noise reduction is a priority.
Easy Installation: Features union fittings and a drop-in design for straightforward installation, which simplifies setup for pool professionals and homeowners alike.
Durable and Efficient: Constructed from thermoplastic for enhanced durability, with NSF and cULus certifications, and operates on both 115V and 230V, ensuring reliable performance and energy efficiency.
