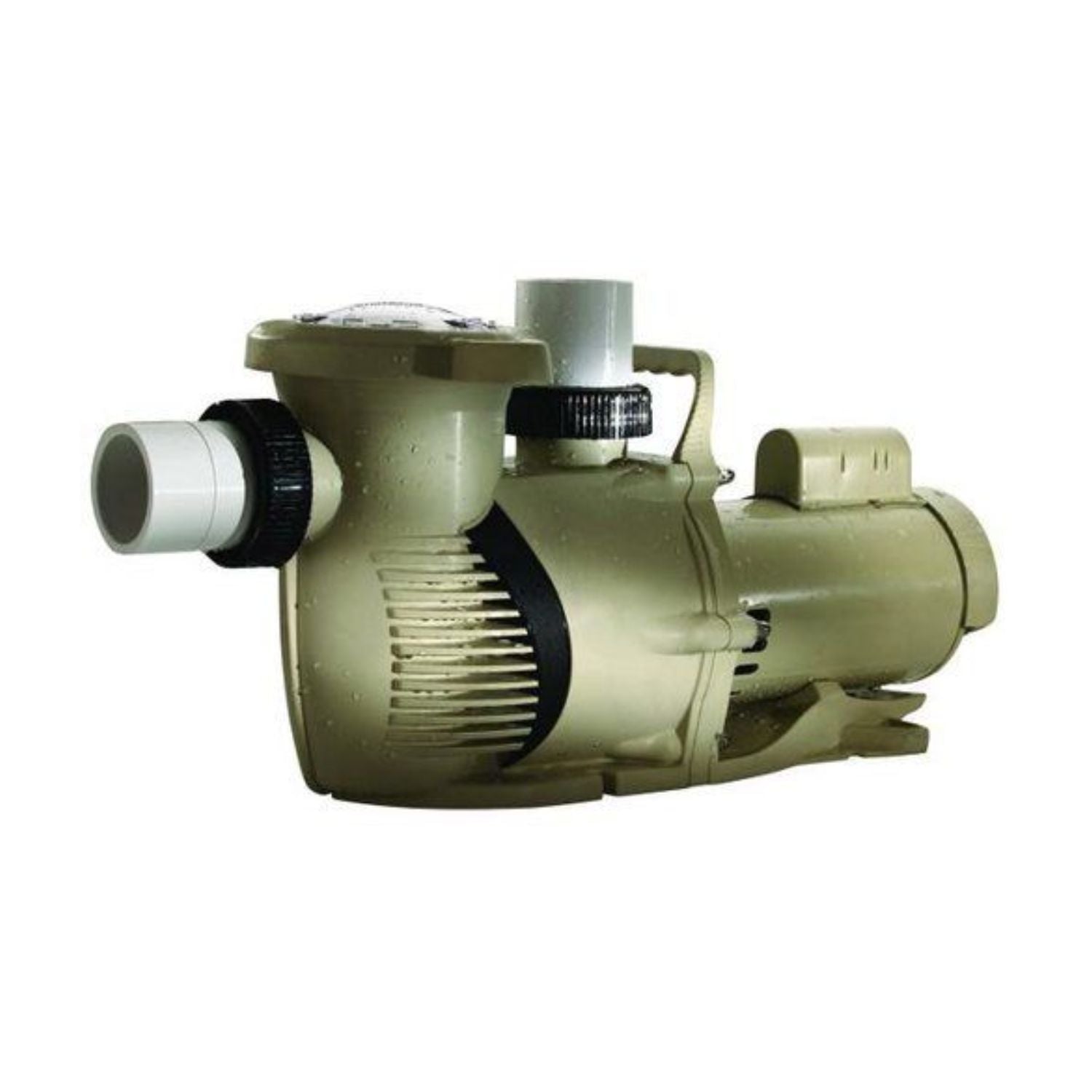

PENTAIR WHISPERFLO PUMP 3HP 3PH XF - 022018
Regular price
$1,449.74
Request purchase access
Couldn't load pickup availability
WHISPERFLOXF PUMP REPLACEMENT PARTS
Legend | Part # | Description |
---|---|---|
1 | 400000 | Wet End Assembly |
3 | 410020 | Union Kit Without Tap |
5 | 400006 | Lid/Locking Ring Assembly |
6 | 400007Z | XF Series Replacement Basket |
7 | 35505-1440 | Lid/Locking Ring O-Ring |
8 | 192115 | Drain Plug O-Ring |
9 | 71131 | Drain Plug |
10 | 410001 | 2.5 in. C-Clip Locking Ring |
11 | 410002 | 2.5 in. Union Adapter without Tap |
12 | 411000 | 2.5 in. Union Nut |
13 | 410016Z | 2.5 in. Seal Kit - (Includes two) |
14 | 350336 | Diffuser O-Ring |
15 | 353323 | Diffuser Screw |
Diffusers | ||
2 | 400632Z | 2hp 1-Phase TEFC 208-230V |
2 | 400633Z | 3hp 1-Phase TEFC 208-230V |
2 | 400634Z | 5hp 1-Phase TEFC 208-230V |
2 | 400612Z | 2hp Standard E 230V |
2 | 400613Z | 3hp Standard E 230V |
2 | 400609Z | 2hp High Eff 208-230V |
2 | 400610Z | 3hp High Eff 208-230V |
2 | 400611Z | 5hp High Eff 208-230V |
2 | 400607Z | 2hp 2 Speed 230V |
2 | 400608Z | 3hp 2 Speed 230V |
2 | 400607Z | 2.5hp Uprated 2 Speed 230V |
2 | 400612Z | 2.5hp Uprated Standard E 230V |
2 | 400609Z | 2.5hp Uprated High E 208-230V |
2 | 400617Z | 2hp 3 Phase TEFC 208-230-460V |
2 | 400618Z | 3hp 3 Phase TEFC 208-230-460V |
2 | 400619Z | 5hp 3 Phase TEFC 208-230-460V |
17 | 37337-6080 | Impeller Reverse Screw |
18 | 33455-1047 | Impeller Reverse Screw O-Ring |
19 | 351446 | Seal Plate O-Ring |
Impellers | ||
20 | 400020Z | XFET-8 |
20 | 400015 | XFET-12 |
20 | 400023Z | XFET-20 |
20 | 400020Z | XF-8 |
20 | 400015 | XF-12 |
20 | 400020Z | XFE-8 |
20 | 400015 | XFE-12 |
20 | 400023Z | XFE-20 |
20 | 400020Z | XFDS-8 |
20 | 400015 | XFDS-12 |
20 | 400020Z | XFDS-30 |
20 | 400020Z | XF-30 |
20 | 400020Z | XFE-30 |
20 | 400020Z | XFJ-8 |
20 | 400015 | XFJ-12 |
20 | 400023Z | XFJ-20 |
20 | 400020Z | XFK-8 |
20 | 400015 | XFK-12 |
20 | 400023Z | XFK-20 |
21 | 17351-0101S | Mechanical Seal Assembly |
22 | 400002 | Seal Plate |
23 | 072184 | Flat Washer |
24 | U43-12SS | Split Lock Washer |
25 | 071413 | Acorn Nut |
26 | 400004Z | Motor Base |
Motors | ||
27 | 354815S | 2hp 1-Phase TEFC 208-230V |
27 | 354817S | 3hp 1-Phase TEFC 208-230V |
27 | 354819S | 5hp 1-Phase TEFC 208-230V |
27 | 355026S | 2hp Standard E 230V |
27 | 355033S | 3hp Standard E 230V |
27 | 355014S | 2hp High Eff 208-230V |
27 | 355016S | 3hp High Eff 208-230V |
27 | 353317S | 5hp High Eff 208-230V |
27 | 359526S | 2hp 2 Speed 230V |
27 | 353316S | 3hp 2 Speed 230V |
27 | 359526S | 2.5hp Uprated 2 Speed 230V |
27 | 355026S | 2.5hp Uprated Standard E 230V |
27 | 355014S | 2.5hp Uprated High E 208-230V |
27 | 354809S | 2hp 3 Phase TEFC 208-230-460V |
27 | 354811S | 3hp 3 Phase TEFC 208-230-460V |
27 | 354813S | 5hp 3 Phase TEFC 208-230-460V |
