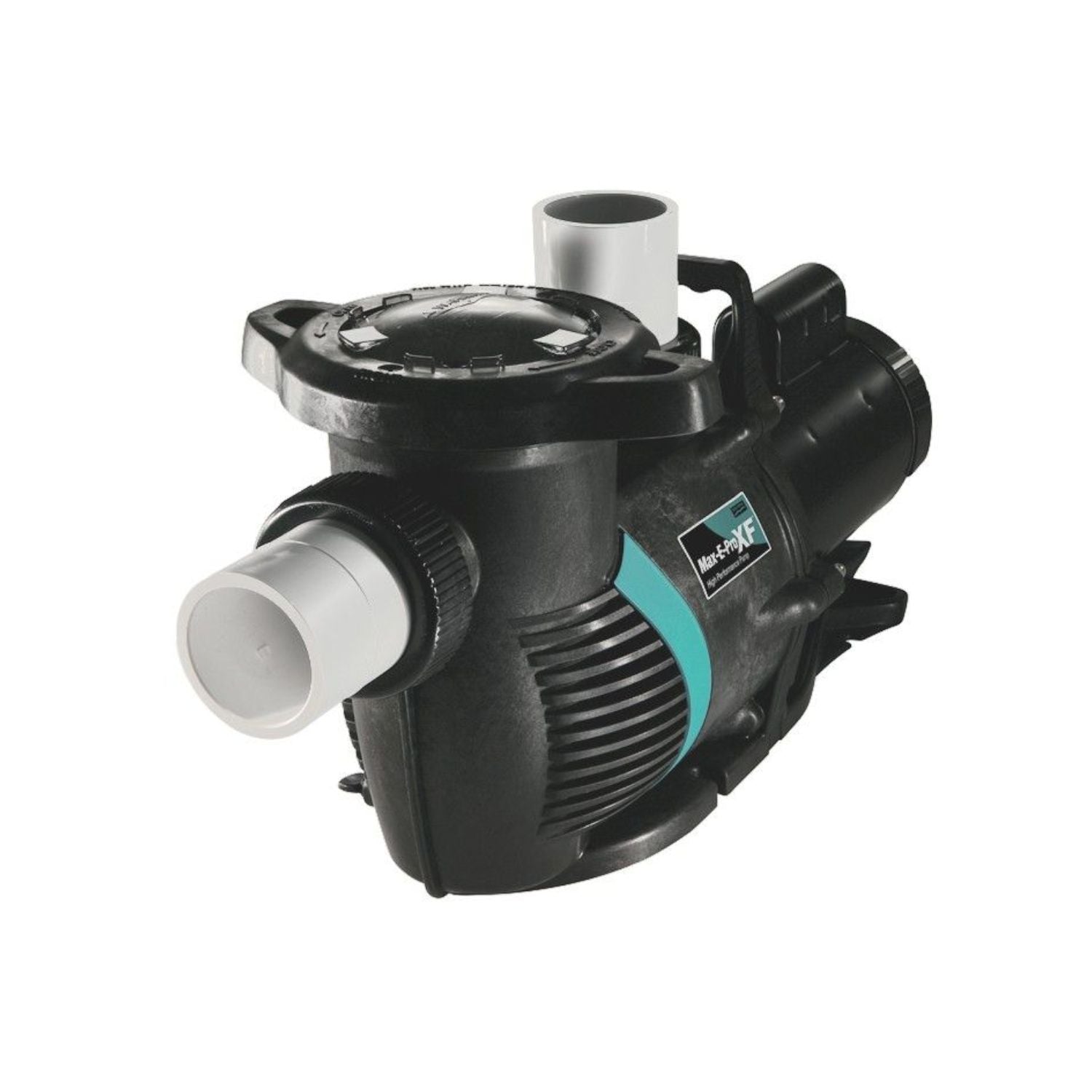

PENTAIR MAXEPRO PUMP 2HP XPE-8 - 023009

Out of stock
SKU: 023009
Regular price $830.40

MAX-E-PROXF SERIES PUMP
REPLACEMENT PARTS




Item

Part No.

Description

MAX-E-PRO XF PUMP

1

401000

Wet End Assembly

2

See chart on next page

Power End Assembly

3

410020

Union Kit Without Tap

5

401006

Lid/Locking Ring Assembly

6

400007Z

XF Series Replacement Basket

7

35505-1440

Lid/Locking Ring O-Ring

8

192115

Drain Plug O-Ring

9

357161

Drain Plug

10

410001

2.5 in. C-Clip Locking Ring

11

410002

2.5 in. Union Adapter without Tap

12

411000

2.5 in. Union Nut

13

410016Z

2.5 in. Seal Kit - (Includes two)

14

350336

Diffuser O-Ring

15

353323

Diffuser Screw

16

See chart on next page

Diffuser

17

37337-6080

Impeller Reverse Screw

18

33455-1047

Impeller Reverse Screw O-Ring

19

351446

Seal Plate O-Ring

20

See chart on next page

Impeller Assembly

21

17351-

0101S

Mechanical Seal Assembly

22

401002

Seal Plate

23

072184

Flat Washer

24

U43-12SS

Split Lock Washer

25

071413

Acorn Nut

26

401004Z

Motor Base

27

See chart on next page

Motor



Item

Part No.

Description

IMPELLERS

20

400020Z

XFET-8

20

400015

XFET-12

20

400023Z

XFET-20

20

400020Z

XF-8

20

400015

XF-12

20

400020Z

XFE-8

20

400015

XFE-12

20

400023Z

XFE-20

20

400020Z

XFDS-8

20

400015

XFDS-12

20

400020Z

XFDS-30

20

400020Z

XF-30

20

400020Z

XFE-30

20

400020Z

XFJ-8

20

400015

XFJ-12

20

400023Z

XFJ-20

20

400020Z

XFK-8

20

400015

XFK-12

20

400023Z

XFK-20

Motors

27

354816S

2hp 1-Phase TEFC 208-230V

27

354818S

3hp 1-Phase TEFC 208-230V

27

354820S

5hp 1-Phase TEFC 208-230V

27

355027S

2hp Standard E 230V

27

355034S

3hp Standard E 230V

27

355015S

2hp High Eff 208-230V

27

355017S

3hp High Eff 208-230V

27

353319S

5hp High Eff 208-230V

27

359527S

2hp 2 Speed 230V

27

353318S

3hp 2 Speed 230V

27

359527S

2.5hp Uprated 2 Speed 230V

27

355027S

2.5hp Uprated Standard E 230V

27

355015S

2.5hp Uprated High E 208- 230V

27

354810S

2hp 3 Phase TEFC 208-230-

460V

27

354812S

3hp 3 Phase TEFC 208-230-

460V

27

354814S

5hp 3 Phase TEFC 208-230-

460V

DIFFUSERS

16

400010

XFET-8

16

400010

XFET-12

16

400011Z

XFET-20

16

400010

XF-8

16

400010

XF-12

16

400010

XFE-8

16

400010

XFE-12

16

400011Z

XFE-20

16

400010

XFDS-8

16

400010

XFDS-12

16

400010

XFDS-30

16

400010

XF-30

16

400010

XFE-30

16

400010

XFJ-8

16

400010

XFJ-12

16

400011Z

XFJ-20

16

400010

XFK-8

16

400010

XFK-12

16

400011Z

XFK-20

POWER ENDS

2

401632Z

2hp 1-Phase TEFC 208-230V

2

401633Z

3hp 1-Phase TEFC 208-230V

2

401634Z

5hp 1-Phase TEFC 208-230V

2

401612Z

2hp Standard E 230V

2

401613Z

3hp Standard E 230V

2

401609Z

2hp High Eff 208-230V

2

401610Z

3hp High Eff 208-230V

2

401611Z

5hp High Eff 208-230V

2

401607Z

2hp 2 Speed 230V

2

401608Z

3hp 2 Speed 230V

2

401607Z

2.5hp Uprated 2 Speed 230V

2

401612Z

2.5hp Uprated Standard E 230V

2

401609Z

2.5hp Uprated High E 208-230V

2

401617Z

2hp 3 Phase TEFC 208-230-460V

2

401618Z

3hp 3 Phase TEFC 208-230-460V

2

401619Z

5hp 3 Phase TEFC 208-230-460V







Hydraulic isolator separates priming water from pumping water for faster priming, more turbulence-free flow and increased efficiency.
Dual-compartment motor for simplified field wiring.
Union connectors included for connecting directly to 2.5 in. or 3 in. plumbing.

Diamond seals made of oxidation-resistant, self-retaining EPDM rubber for increased durability and tighter seal.
Extra-large, robust basket with smooth surface for easy debris removal.
Drop-in replacement for original Max-E-Pro®; and optional riser plate enable easy Challenger® replacement.
Easy-carry handle; easily removable, ergonomic lock ring; and see-through lid for easy basket inspection.
