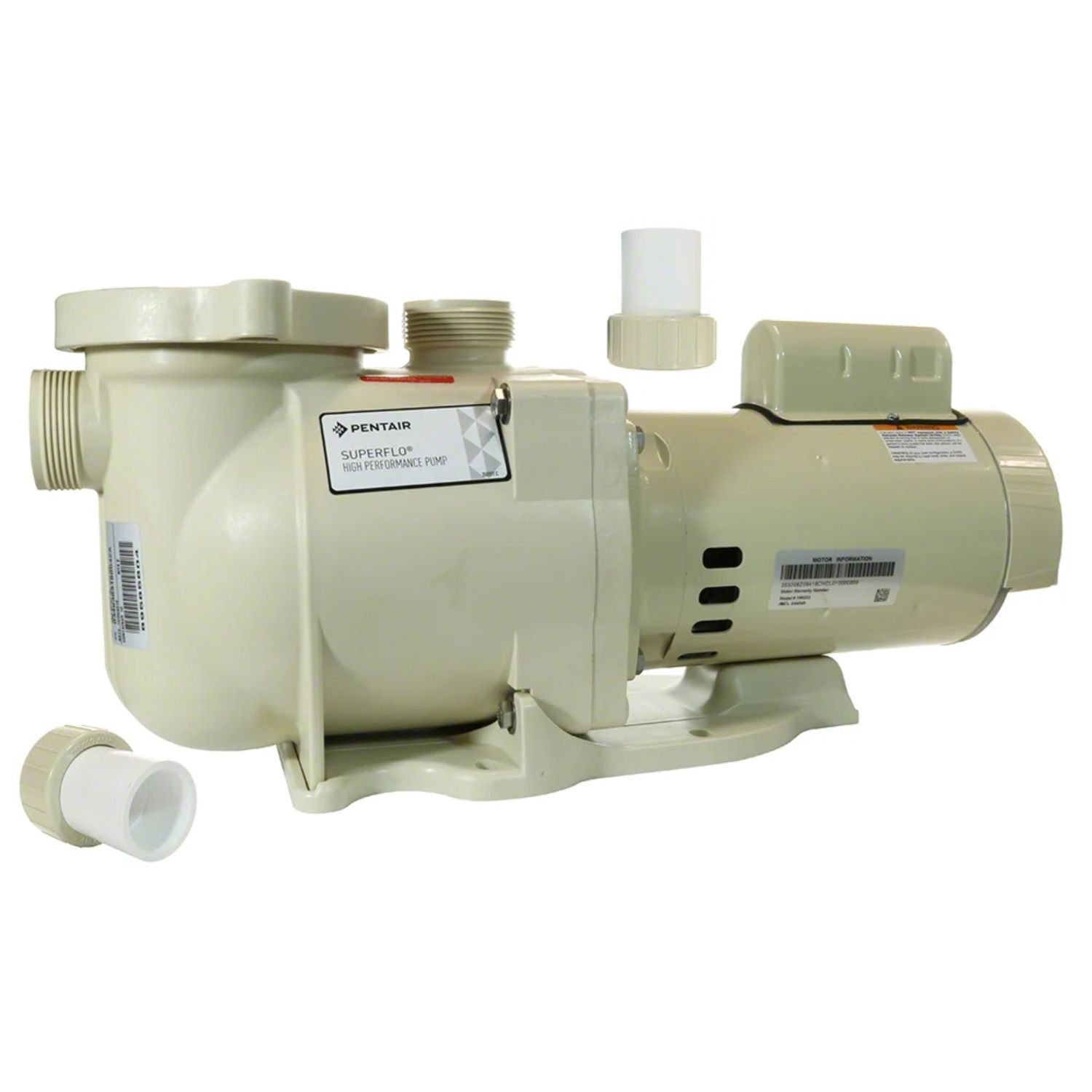

PENTAIR SUPERFLOW PUMPS 0.5HP 60Hz - 340036

Out of stock
SKU: 340036
Regular price $349.88

SUPERFLO PUMP  REPLACEMENT PARTS



Legend Part # Description
1 355022S 1-1.2 HP Motor SQFL, 1 Speed,1 phase, 115/208-230, 60 Hz,almond
U.S Motors
1 EUSQ1152 U.S MOTOR 1.5 HP SQUARE FLANGE
Regal Beloit Motors
1 USQ1152 CENTURY SQUARE FLANGE MOTOR 1.5 HP
2 356012 Seal plate
2 PS-200 Seal Shaft Seal Assembly
3 350094 Base
4 350090 Clamp, Cam & Ramp
5 350091 Lid
6 357255 O-ring, lid No. 2-357
7 350089 Volute
8 350093 Adaptor, 2 req
9 350092 Nut, 2 req.
10 192115 O-ring drain plug, 2 req.
11 071131 Drain plug, 2 req.
12 355621 Screw, 3/4-16 x 2-1/4 Hex hd, 4 req.
13 072184 Washer, 3/8 in. SS, 4 req.
14 355619 O-ring, 1 req.
15 6020018 O-ring adaptor No.2-226, 2 req.
16 355030 Seal diffuser
16 0-395-0
17 355334 Screw, No.8-32 hex washer HD,3 req.
18 355617 Diffuser, 1/2 HP
18 355618 Diffuser, 1-1/2 HP
19 U30-74SS Hex head screw, 3/8, 16, 4 req.
20 355043 Impeller 1/2 HP
20 355067 Impeller 1 HP
20 355074 Impeller 1-1/2 HP
20 355086 Impeller 2 HP
21 355389 Screw, impeller locking
22 354545S Seal set
23 355667 Basket, large
24 350157 Union Kit

The SuperFlo is specifically designed to be the best choice for a variety of inground pools

Energy Efficient Motor
Self-priming for quicker, easier start-up
See-through lid permits easy inspection of strainer basket
Quiet operation due to superior internal flow design that reduces hydraulic noise
Unionized fittings Included (1.5" internal slip and 2" external slip)
Cam and Ramp Lid locks in place with a quarter-turn
Performance and pressure tested to ensure superior quality
Heavy-duty, high service factor 56 square flange motor
Integral volute and pot reduce hydraulic noise
