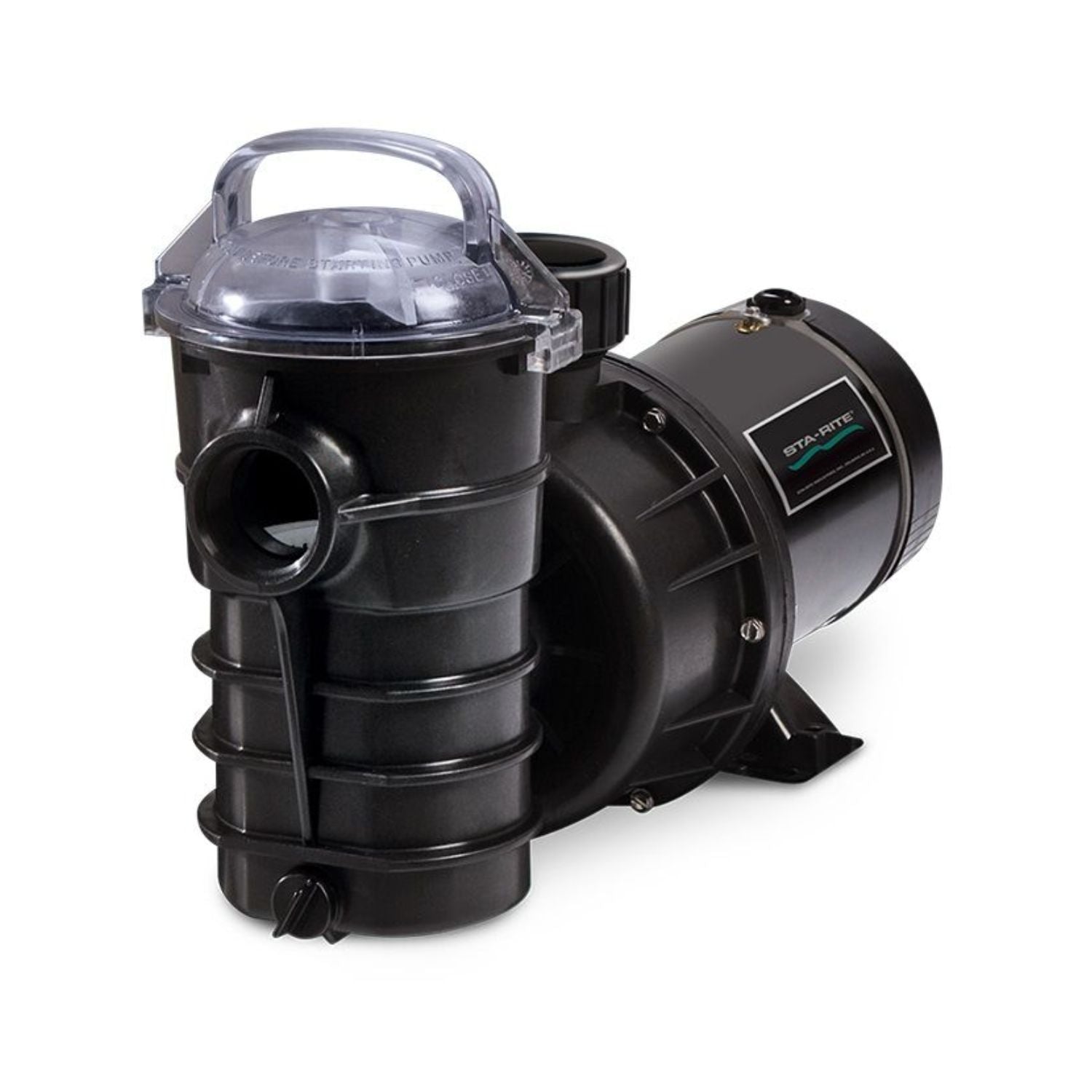

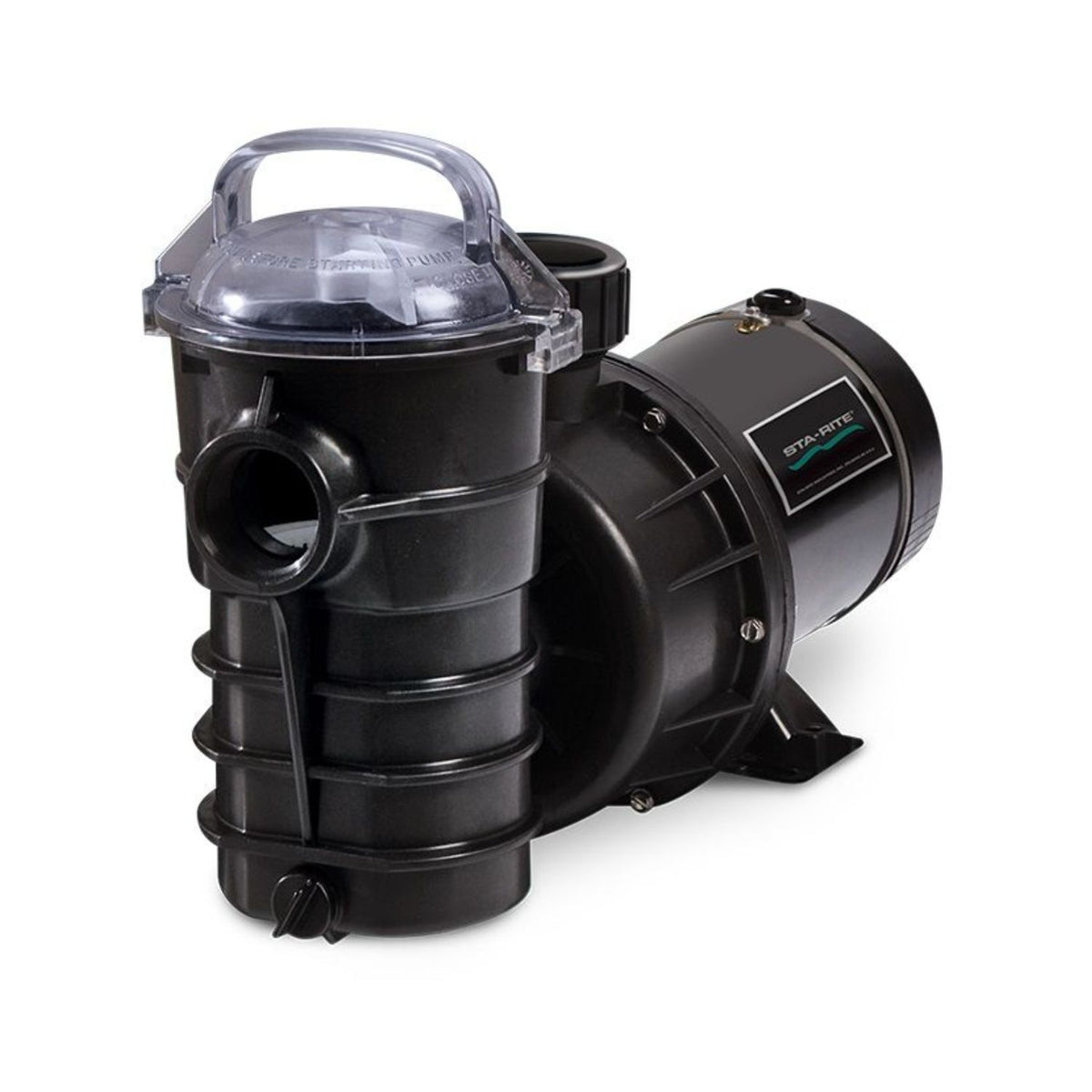

DYNAMO PUMPS

2

354632

Diffuser, 3/4 HP bracket

2

354633

Diffuser, 1, 1-1/2 HP bracket

3

354542

Nut, 10-24 SS, 6 req.

4

354634

O-ring, 3/16 in. bracket diffuser

5

354545S

Seal, 5/8 in. mechanical

6

353002

Impeller, 1/2 HP

6

354552

Impeller, 3/4 HP

6

355122

Impeller, 1 HP

7

354630

Housing, body

8

354541

Screw, 10-24-1-1/2 in. slotted hex, 6 req.

9

U178-920P

Drain plug assy. - 2 req.

10

273062

O-ring

11

354530

Pot

12

354548

Basket w/ handle

13

354533

O-ring, lid

14

354531

Lid, universal

14

354113

Chemical Resistant Lid

15

354103

Pot assembly

16

354621

Body, motor enclosure

17

354881

Cap, motor enclosure (on/off)

17

354882

Cap. motor enclosure (two-speed)

18

154716

Screw, No.10 self tapping

19

155371

Cord, 25 ft.

20

41412700

Bushing connector

21

155187

Switch, on/off toggle (CSA)

21A

356546

Switch, three position toggle (Hi/Low/Off)

22

155193

Wire, 6 in. jumper

24

350024

Locknut, steel 1-1/2 in.
