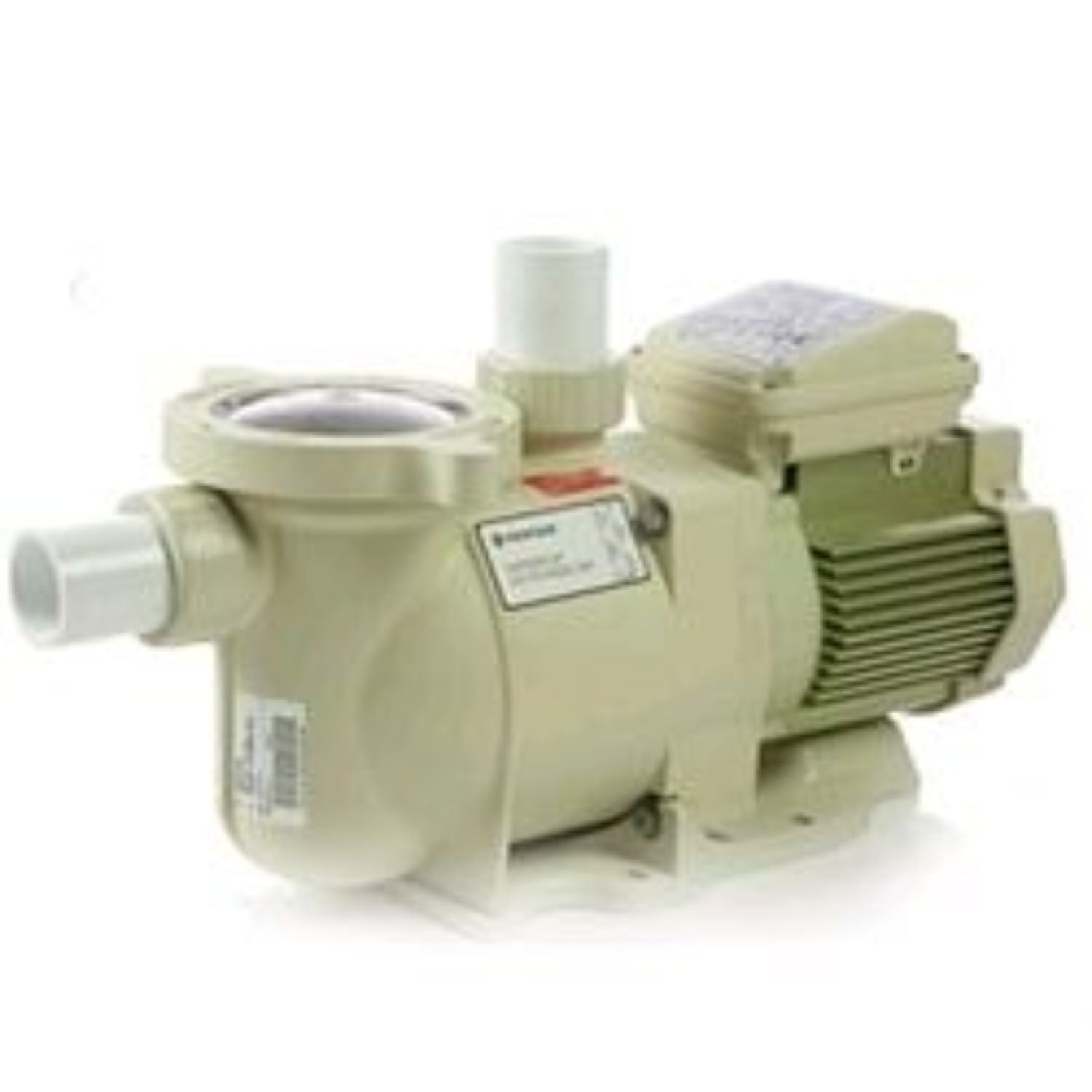

PENTAIR SUPERFLO PMP TEFC 2HP 1PH - 348146
Regular price
$563.30
Request purchase access
Couldn't load pickup availability
SUPERFLO PUMP REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| 1 | 355022S | 1-1.2 HP Motor SQFL, 1 Speed,1 phase, 115/208-230, 60 Hz,almond |
| U.S Motors | ||
| 1 | EUSQ1152 | U.S MOTOR 1.5 HP SQUARE FLANGE |
| Regal Beloit Motors | ||
| 1 | USQ1152 | CENTURY SQUARE FLANGE MOTOR 1.5 HP |
| 2 | 356012 | Seal plate |
| 2 | PS-200 | Seal Shaft Seal Assembly |
| 3 | 350094 | Base |
| 4 | 350090 | Clamp, Cam & Ramp |
| 5 | 350091 | Lid |
| 6 | 357255 | O-ring, lid No. 2-357 |
| 7 | 350089 | Volute |
| 8 | 350093 | Adaptor, 2 req |
| 9 | 350092 | Nut, 2 req. |
| 10 | 192115 | O-ring drain plug, 2 req. |
| 11 | 071131 | Drain plug, 2 req. |
| 12 | 355621 | Screw, 3/4-16 x 2-1/4 Hex hd, 4 req. |
| 13 | 072184 | Washer, 3/8 in. SS, 4 req. |
| 14 | 355619 | O-ring, 1 req. |
| 15 | 6020018 | O-ring adaptor No.2-226, 2 req. |
| 16 | 355030 | Seal diffuser |
| 16 | 0-395-0 | |
| 17 | 355334 | Screw, No.8-32 hex washer HD,3 req. |
| 18 | 355617 | Diffuser, 1/2 HP |
| 18 | 355618 | Diffuser, 1-1/2 HP |
| 19 | U30-74SS | Hex head screw, 3/8, 16, 4 req. |
| 20 | 355043 | Impeller 1/2 HP |
| 20 | 355067 | Impeller 1 HP |
| 20 | 355074 | Impeller 1-1/2 HP |
| 20 | 355086 | Impeller 2 HP |
| 21 | 355389 | Screw, impeller locking |
| 22 | 354545S | Seal set |
| 23 | 355667 | Basket, large |
| 24 | 350157 | Union Kit |
