Item

Part No.

Description

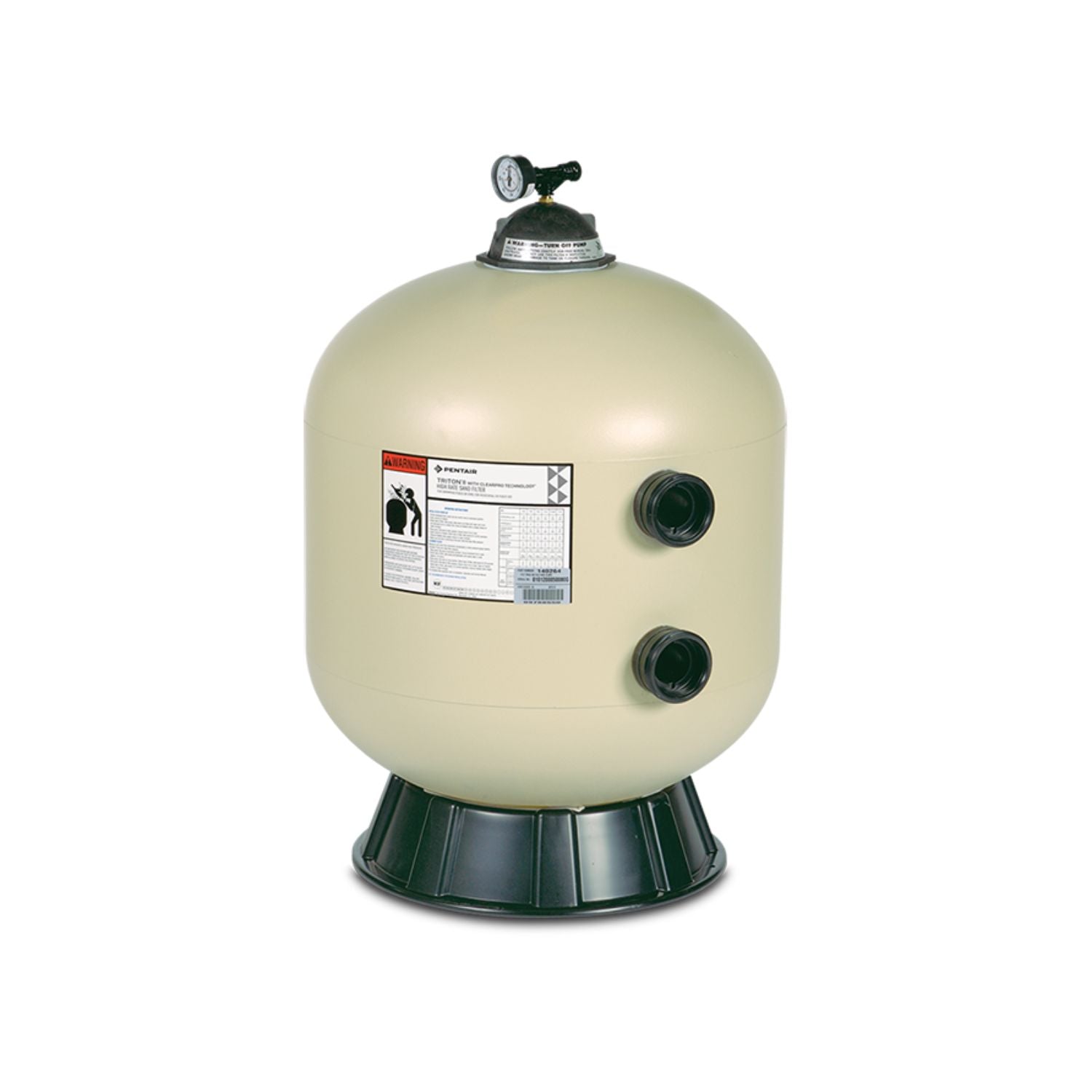

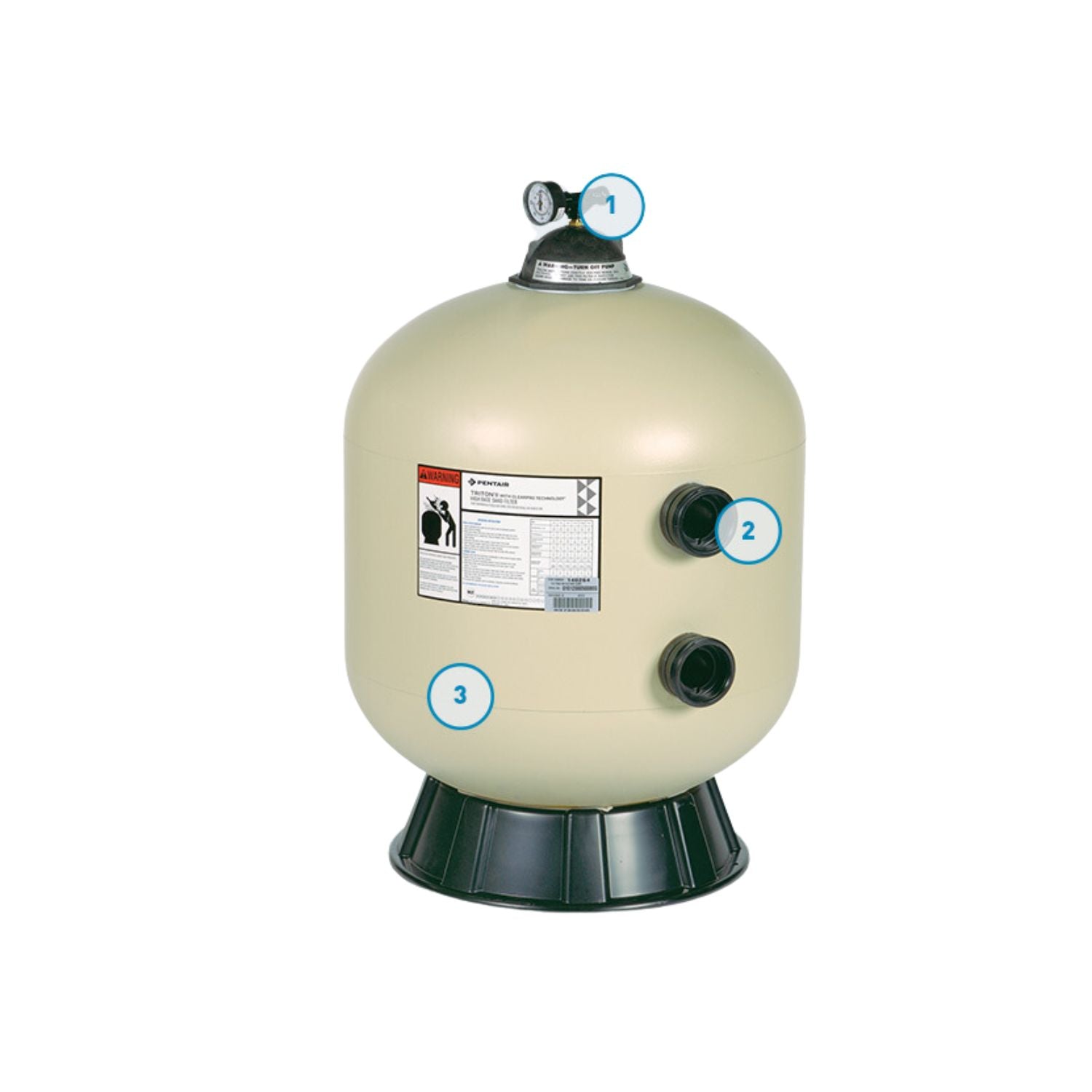

TRITON II SAND FILTERS

1

154689

Air bleeder/tee assembly 13

2

154700

Adapter, brass air bleeder 13

3

190059

Gauge, back mount pressure

13

4

154661

O-ring, air bleeder adapter 13

5

154664

Nut, 3/8 in., 16 SS 13

6

154570

Closure 6 in. btr. thread, see Detail A 13

6

154559

Closure 6 in. “V” thread, black, see Detail B 13

7

154493

O-ring closure, 6 in., white 13

8

154578

Strainer air relief, 1/4 in. 3

8

150035

Strainer air relief, 3/8 in. 4

9

154435

Tube air relief TR40 3

9

150039

Tube air relief TR40 4

9

154436

Tube air relief TR50/60 3

9

150040

Tube air relief TR50/60 4

9

154437

Tube air relief TR100 3

9

150041

Tube air relief TR100 4

9

154438

Tube air relief TR140 3

9

150042

Tube air relief TR140 4

10

154598

Diffuser assembly TR40/50

10

154599

Diffuser assembly TR60

10

154462

Diffuser assembly TR100

10

154906

Diffuser assembly TR140

11

154803

Piping assembly upper TR40

11

156814

Piping assembly upper TR50

11

154533

Piping assembly upper TR60

11

154426

Piping assembly upper TR100

11

154500

Piping assembly upper TR140

12

154441

Connector air relief tube 3

12

150036

Connector air relief tube 4

13

154801

Piping assembly lower TR40

13

156816

Piping assembly lower TR50

13

154805

Piping assembly lower TR60

13

155284

Piping assembly lower TR60 14

13

154807

Piping assembly lower TR/ PF100

13

154489

Piping assembly lower TR140

14

154636

Tank & ft. assembly TR40, 6 in. btr. thd., Almond, Detail A

14

154637

Tank & ft. assembly TR50, 6 in. btr. thd., Almond, Detail A

14

154638

Tank & ft. assembly TR60, 6 in. btr. thd., Almond, Detail A

14

154639

Tank & ft. assembly TR100, 8-1/2 in. btr. thd., Almond, Detail A

14

154640

Tank & ft. assembly TR140, 8-1/2 in. btr. thd., Almond, Detail A

14

156224

Tank & ft. assembly TR100HD btr. thread, black HD

15

152290

Lateral, 6-11/16 in. L TR40/50/60, 8 req.

15

150085

Lateral TR60 Grey. 1/4 turn 14

15

152202

Lateral, 9-1/8 in. L TR100, 8 req.6

15

154540

Lateral, 12 in. L TR140, 8 req.

15

150088

Lateral, ClearPro

16

154763

Hub lateral TR40/50/60

16

155753

Hub lateral, ClearPro- 6 req 14

16

154453

Hub lateral TR100/140

17

154698

Spigot, 3/4 in. NPT sand drain 8

18

357161

Plug, 1/4 in. NPT drain 8

18

U178-920P

Drain Plug Assy

19

154512

Wrench, 6 in. closure 13

19

154510

Wrench closure aluminum, 6 in. 13

20

154412

Locknut, 2 in. internal, 2 req.

21

154416

Spacer, 2 in. internal, 2 req.

22

154492

O-ring, 2 in. bulkhead, 2 req.

23

154408

Spacer, 2 in. external, 2 req.

24

154538

Gasket, 2 in. bulkhead, 2 req.

25

154405

Bulkhead, 2 in., 2 req.

26

192115

O-ring drain plug 8

27

154418

Washer, 3/8 in. SS 13

28

154926

Foot, 16 in. dia., TR40/50 2, 11

28

154520

Foot, 19 in. dia., TR60 2, 11

28

154596

Foot, 24 in. dia., TR100/140 2, 11

29

274494

O-ring valve adptr., 2 req.

30

271092

2 in. Thread adapter. kit 9

31

271094

1-1/2 in. Thread adapter. kit 9

32

271096

2 in. Slip adapter. kit 9

32

274426

Adapter Kit, 1-1/2 in. x 2 in.

33

155738

Kit closure, 8-1/2 in HD

33

154641

Kit closure, 6 in. btr. thread, black, Detail A 13

33

154697

Kit closure, 6 in. “V” thread, tan, Detail B 13

33

154856

Kit closure, 8-1/2 in. btr. thread, black 10, 13

34

154687

Fitting package complete 12, 13

35

154611

Spacer air vent strainer, 3-3/4 in., TR40

35

154612

Spacer air vent strainer, 4-1/2 in., TR50/60

35

154613

Spacer air vent strainer, 5-1/2 in., TR100

35

154614

Spacer air vent strainer, 5 in., TR140
