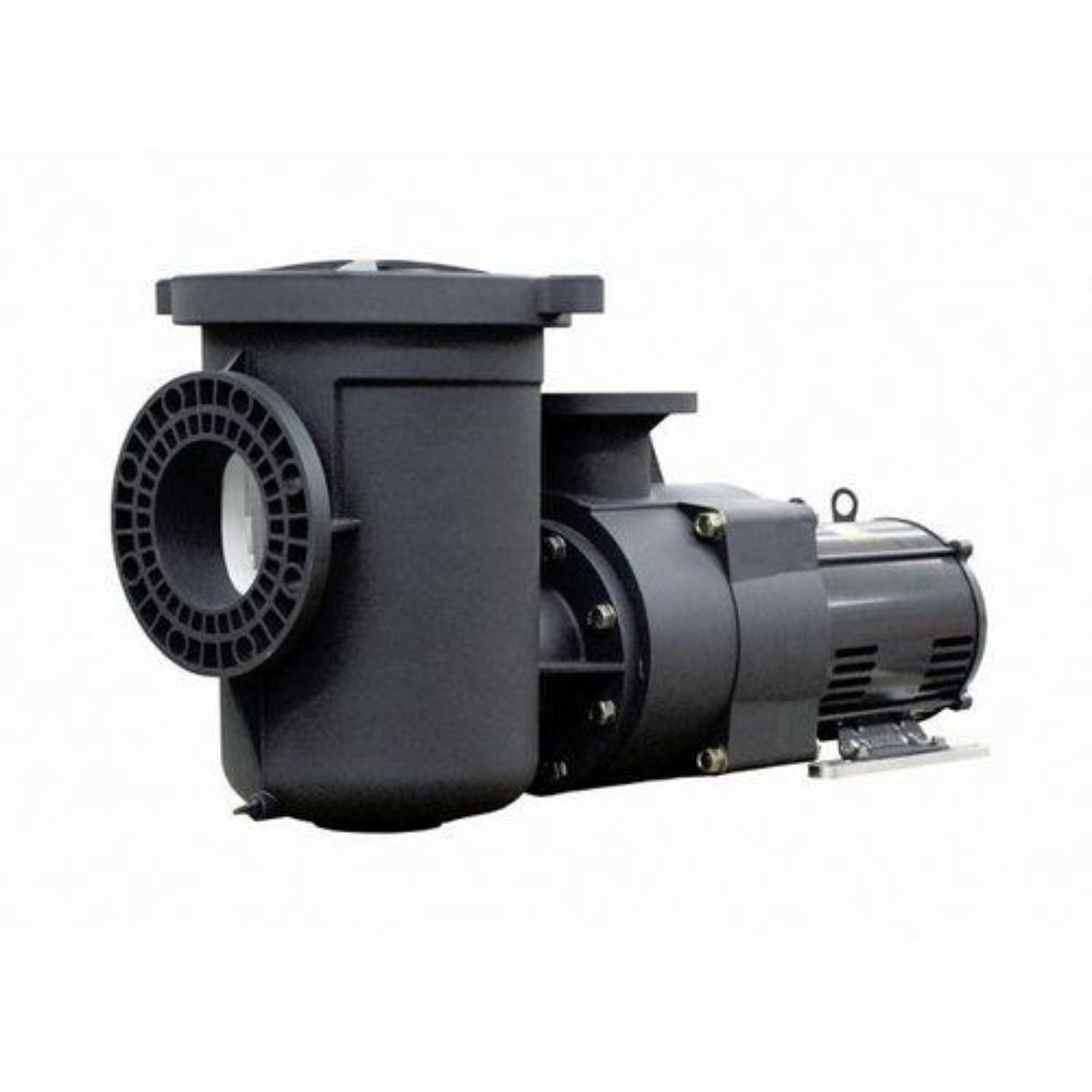

PENTAIR WATER FALLS EQ PUMP 5HP (EQW500) - 340017
Regular price
$6,477.12
Request purchase access
Couldn't load pickup availability
EQ SERIES COMMERCIAL PUMP REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| 1 | 357071 | Motor, 15hp 3 Phase |
| 1 | 357070S | Motor, 10hp 3 Phase 208/230/460v |
| 1 | 357069 | Motor, 7.5hp 3 Phase 208/230/460v |
| 1 | 357066S | Motor, 7-1/2hp 1 Phase 230v |
| 1 | 357068S | Motor, 5hp 3 Phase 208/230/460v (357068) |
| 1 | 357065S | Motor 5 Hp Single Phase |
| * | R221016 | Protective Pool Motor Cover |
| 2 | 356713 | Motor Support Eq Pump, Each |
| 3 | 356712 | Support Adapter, Motor Eqw300, Eq500, Eq750-3ph |
| 4 | 72184 | Washer Ss 7/16"id X 7/8"od (sample W-7) |
| 5 | 9.8E+07 | Washer, Lock 3/8, S/s |
| 6 | A135 | Screw For Eq750-1ph, Eq1000 & Eq1500 |
| 6 | 350073 | Screw F/eq300, Eq500, & Eq750-3 Ph |
| 7 | 356790 | Adapter Motor, Eq |
| 8 | 75842 | Washer |
| 9 | 350063 | Washer, Split Lock |
| 10 | 354290 | Screw Hex Head (hex Head Screw) |
| 10 | 75843 | Bolt 1/2 - 13 X 1 S/s Hex |
| 11 | 356710 | Screw |
| 12 | 356789 | Washer, Flat |
| 13 | 356795 | Seal Plate - Eq |
| 14 | 071725S | Shaft Seal Assy - OEM |
| 14 | PS-360 | Shaft Seal Assy - Geneic |
| 14 | PS-1909 | Shaft Seal Assy - Silicon Carbide |
| 15 | 350030 | Impeller Assembly - Eq500 |
| 15 | 350029 | Impeller Assembly, Eq750 7.5hp |
| 15 | 350028 | Impeller Assy Eq1000 |
| 15 | 350027 | Impeller Assy Eqw300, Eq1500 |
| 15 | 350070 | Impeller Assy Eqw500 |
| 16 | 71037 | Lock Screw, For Impeller |
| 17 | 350032 | Diffuser, Eq500 |
| 17 | 350033 | Diffuser, Eq750, Eq1000 7.5 & 10hp |
| 17 | DIFFUSER, EQW300 EQ1500 | |
| 17 | 357273 | Diffuser, Eqw500 |
| 18 | 5.1E+07 | Washer |
| 19 | 72172 | Lock Washer, 1/4 In |
| 20 | 350035 | Screw F/eq500, Eq750, Eq1000 |
| 20 | 356797 | Screw F/eqw300, Eq1500 |
| 21 | 350037 | O-ring, Diffuser |
| 22 | 356755 | Housing (volute) Eq |
| 23 | 356776 | Nut |
| 24 | 154699 | Plug, Drain 1/4" |
| 25 | 112 | O-ring Od 11/16" |
| 26 | 350060 | Pin Dowell, 5/16" X 1 3/4" 18-8 Ss, Eq |
| 28 | 356780 | O-ring, Seal Plate Eq |
| 29 | 340013 | Strainer Pot Complete |
| 30 | 350171 | Locking Ring/lid/gasket Kit F/eq Pump |
| 31 | 356750 | Lid, Eq Clear |
| 32 | 350166 | Gasket Eq Clear Lid |
| 32 | 357038 | NLA O-RING ORANGE LIDREP W/5071-53 Description 30 |
| 33 | 357184 | Basket, Eq Pump |
| 34 | 356725 | Pot Eq Strainer |
| 38 | 356788 | Screw 8 required |
| 39 | 350013 | O-ring, Lid (436) |
| * | 350087 | Pressure Relief Valve |
