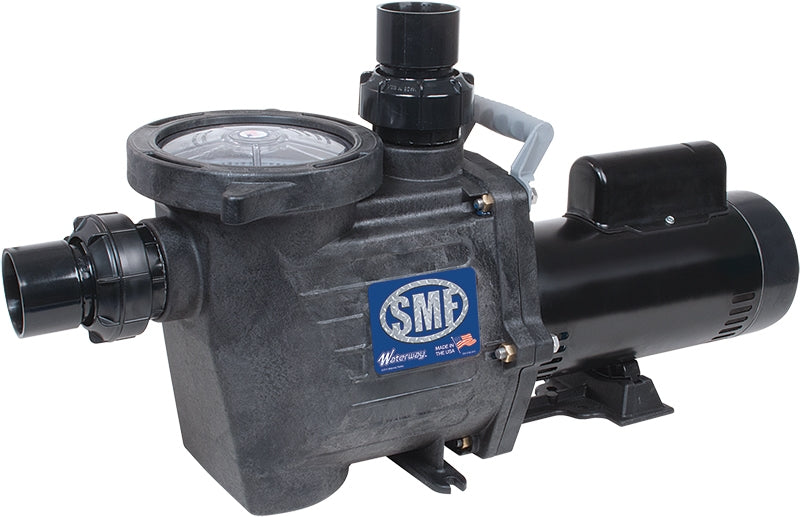

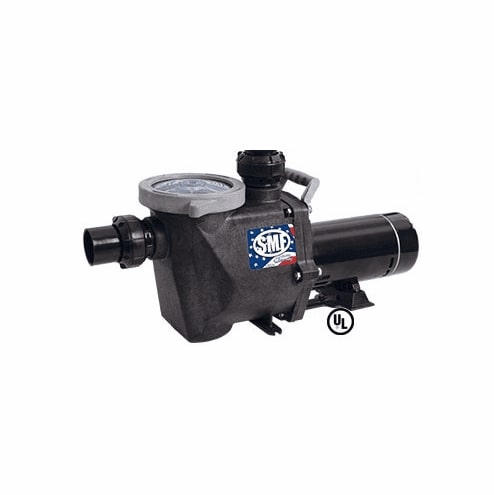

WATERWAY 1.5 HP PUMP 1 SPEED - SMF-115
Regular price
$398.14
Request purchase access
Couldn't load pickup availability
WATERWAY PUMP REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| 1 | 3310330 | Motor, 48-FRAME SQ FLG 3/4HP 115/ 230V 60HZ |
| 2 | 819-0035 | Bolt .375-16 X .875 Long |
| 3 | 672-1350 | Neoprene Motor Support Strip |
| 4 | 319-1500 | Motor Support Base |
| 5 | 819-0013 | Screw Slot Hex Washer 1/4X 1_1/4 |
| 6 | 820-0017 | 3/8" FLAT WASHER TYBE B - POOL PUMPS (18-8SS) |
| 7 | 319-1700 | PUMP HANDLE |
| 8 | 311-1450 | FACEPLATE - MINI SVL CHAMPION |
| 9 | 711-1400 | 711-1400 FACEPLATE GASKET MINI SVL |
| 9 | 806-1400 | CHAMPION/ SMF SEAL PLATE GASKET |
| 10 | 319-3100B | WATERWAY PUMP SEAL SET |
| 10 | 1000 | PS1000 SHAFT SEAL |
| 11 | 711-4300 | SVL GASKET FOR LEFT HANDED SCREW |
| 12 | 819-4360 | Screw Phil. Pan Head Left Hand 1/4-20 X 1 |
| 13 | 310-7470 | SLV56 HIGH PRESSURE/CHAMPION 3/4-3HP DIFFUSER ASSY |
| 14 | 819-0018 | SHCS, #4-40 X 1-1/4" - POOL PUMP (18-8SS) |
| 15 | 805-0238 | O-RING, #238 POOL PUMP |
| 15 | O-359-9 | WHISPERFLO DIFFUSER ORING |
| 16 | 319-1420 | DIFFUSER PLATE, CHAMPION POOL PUMP |
| 17 | 715-1200 | 3/8Quarter Slot Plug (Sd Wet End) |
| 18 | O-130-9 | INDEX PLATE/ CONNECTOR FITTING ORING |
| 18 | 805-0014 | O-RING, #014 - 48FR PUMP FACEPLATE PLUG |
| 20 | 319-1430 | Basket Assy |
| 21 | 805-0436 | 6" STRAINER COVER ORING |
| 21 | O-318-9 | WFE/ 700/ CHALLENGER/ LID ORING (AFTER 11/1998) |
| 21 | O-318-9 | PAC FAB 355332/NS ORING |
| 22 | 319-3228 | Lid, 6Trap |
| 23 | 319-3270 | Lid, 6Trap |
| 26 | 310-7500 | SMF MAX 3/4 HP IMPELLER ASSY |
| 26 | 310-7510 | SMF MAX 1 HP IMPELLER ASSY |
| 26 | 310-7520 | SMF MAX 1.5 HP IMPELLER ASSY |
| 26 | 310-7530 | SMF MAX 2 HP IMPELLER ASSY |
| 27 | 315-2410 | Pump Housing - 2X 2Npt |
| 28 | 820-0017-1 | 3/8 Washer, Split Lock |
| 29 | 820-4280 | Brass Insert, 3/8-16 Unc Housing |
| 30 | 819-0016 | 3/8-16 X 2" HEX - 22" SAND FILTER /16" & 19" OVAL (18-8SS) |
