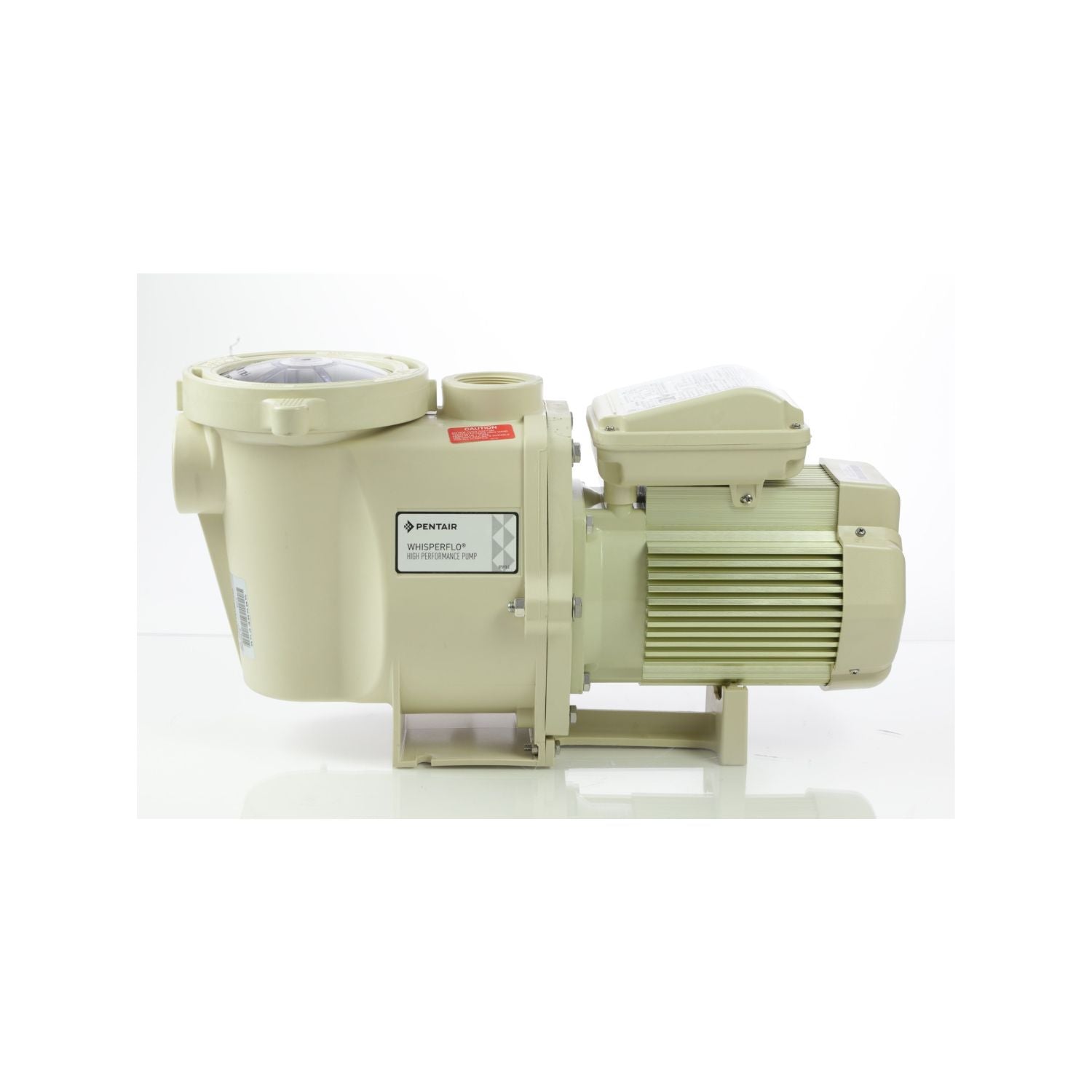

PENTAIR WHISPERFLO VS PUMP 1.5HP 3PH - 011642
Regular price
$970.85
Request purchase access
Couldn't load pickup availability
SUPERFLO REPLACEMENT PARTS
| Legend | Part # | Description |
|---|---|---|
| 1 | 070711 | Clamp band assembly |
| 1 | 357150 | Clamp, Cam & RampTM |
| 1 | 357199 | Clamp, Cam & Ramp |
| 1A | 071136Z | Knob |
| 2 | 070795 | Cover, clear |
| 2 | 357151 | Cover, clear, WFE pump |
| 2 | 357156 | Cover, chemical resistant Cam & Ramp |
| 3 | 071422 | O-ring |
| 3 | 350013 | O-ring |
| 3 | 0-218-0 | O-ring |
| 4 | 070387 | Basket |
| 4 | B-199 | Basket |
| 5 | 070430 | Bolt, 3/8, 16 x 1-1/4 hex hd. SS, 4 req. |
| 6 | 072184 | Washer, 3/8 x 13/16 o.d. SS, 6 req. |
| 7 | 070431 | Bolt,3/8, 16 x 1-3/4 hex hd. SS, 2 req. |
| 8 | 071403 | Nut, 3/8, 16 hex hd., 2 req. |
| 9 | 071445 | O-ring parker No.2-265, WFE pump |
| 9 | 357100 | Black Gasket for Seal Plate |
| 9 | 357102 | Almond Gasket for Seal Plate |
| 10 | 357149 | Volute & Sealplate, Almond Replacement Kit |
| 10 | 350015 | Volute, almond |
| 10 | 357157 | Volute, black |
| 11 | 355227 | O-ring parker No.2-238, WFE pump |
| 11 | 0-359-0 | |
| 12 | 071660 | Set screw, 4-40 x 1-1/8 WFE, 2 req. |
| 13 | 072928 | Diffuser assembly, WFE-12, 3 HP; WFK-12, 3HP models |
| 13 | 072927 | Diffuser assembly, WFE-2–8, 1/2 HP – 2-1/2 HP |
| 14 | 071652 | Set screw, 1/4, 20 x 1 lh. phillips |
| 15 | 075713 | Rubber washer, WFE pump |
| 16 | 071734S | Seal PA-7 w/ ceramic seat, PS1000 |
| 16 | PS-1000 | |
| 17 | 070429 | Bolt, 3/8, 16 x 7/8 SS hex hd., 4 req. |
| 18 | 350202 | Seal Plate Kit, Almond with Gasket |
| 18 | 350101 | Seal Plate Kit WFE Black |
| 19 | 070927 | Foot, WFE-4 pump, almond |
| 19 | 357159 | Foot, black 9 |
| 20 | 070929 | Foot insert, WFE pump, almond |
| 20 | 357160 | Foot insert, WFE pump, black 9 |
| 21 | 071657 | Screw, 1/4, 20 x 1 in. hh. SS, 2 req. |
| 22 | 071406 | Nut, 1/4, 20 hex. hd. SS, 2 req. |
| 23 | 072183 | Washer, flat 1/4 x 5/8, 2 req. |
| 24 | 071131 | Knob plug drain, 2 req. almond |
| 24 | 357161 | Knob plug drain, 2 req., black 9 |
| 25 | 192115 | O-Ring drain plug, 2 req. |
| 26 | 357149 | (Includes items 1-4, 9, 10, 16, 18, 24, 25.) |
| MOTORS | ||
| 27 | 350088S | 3/4 HP, 2 sp, WFDS-3 |
| 27 | 355020S | 3/4 HP, WF-3, 24, 1 sp, almond |
| U.S Motors | ||
| 27 | EUSQ1072 | U.S MOTOR 3/4 HP SQUARE FLANGE |
| Regal Beloit Motors | ||
| 27 | USQ1072 | CENTURY SQUARE FLANGE MOTOR 3/4 HP |
| 28 | 073128 | Impeller (WFE-4, WFE-26, WF-4, WF-26, WFK-4, WFDS-4, WFDS-26) |
| 28 | 073129 | Impeller (WF-6, WF-28, WFE-6, WFE-28, WFK-6, WFDS-6, WFDS-28) |
| 28 | 073130 | Impeller (WF-8, WF-30, WFE-8, WFE-30, WFK-8, WFDS-8, WFDS-30) |
| 28 | 073131 | Impeller (WFE-12, WF-12, WFK-12) |
